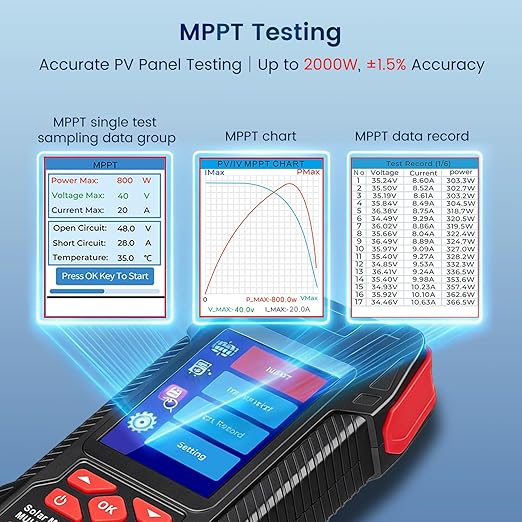

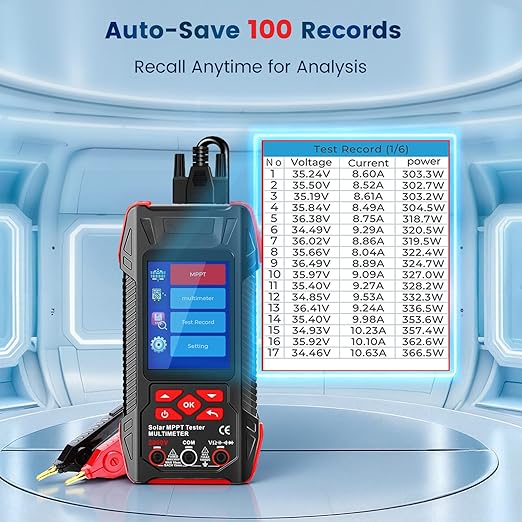

Professional MPPT Tracking with Data Logging & Curve Visualization - Equipped with advanced MPPT technology, this solar tester captures 1000 sampling points to generate real-time color-coded curves (red for power, blue for current, green for voltage) and stores up to 100 test records for performance analysis. It precisely measures MPPT power (0~2000.0W, ±1%+5) and supports full MPPT test data logging, helping optimize solar panel output and verify MPPT controller efficiency for reliable PV system performance validation.
2000W High-Power PV Module Testing & High-Precision Measurement - Designed for heavy-duty use, it supports testing 2000W high-power photovoltaic modules, covering solar voltage (3~90.00V, ±1.5%+5) and current (0~40.00A, ±1.5%+5) with industry-leading accuracy. It accurately measures core PV parameters including Pmax, Voc, and Isc (±1.5% accuracy), eliminating measurement errors and delivering reliable data for PV module production, acceptance, and performance verification.

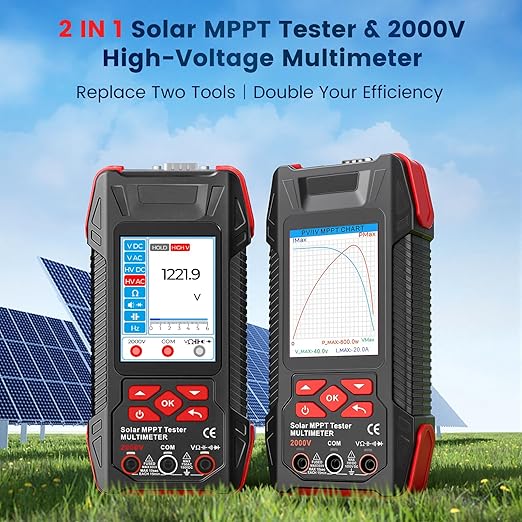

60,000-Count Multimeter with 2000V AC/DC High-Voltage Measurement - Integrates a professional 60,000-count digital multimeter with 2000V AC/DC high-voltage measurement (High DCV: 2000V ±0.8%+0.8; High ACV: 2000V ±1.5%+0.5). It supports comprehensive electrical testing: DC/AC voltage, resistance (600Ω~60MΩ), capacitance (6nF~60MF), frequency (6Hz~6MHz), continuity test (<10Ω buzzing), and diode test—an all-in-one tool for PV system fault diagnosis and routine maintenance.

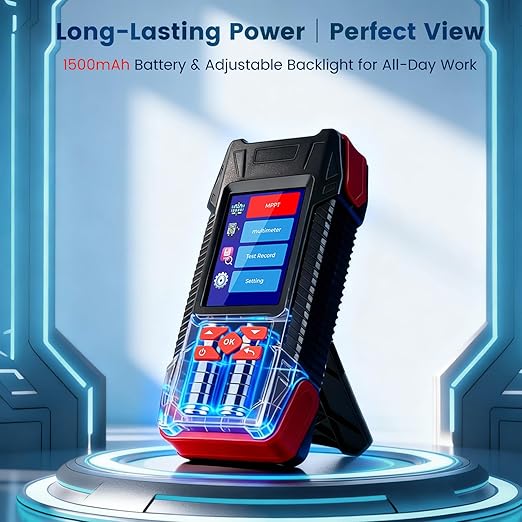

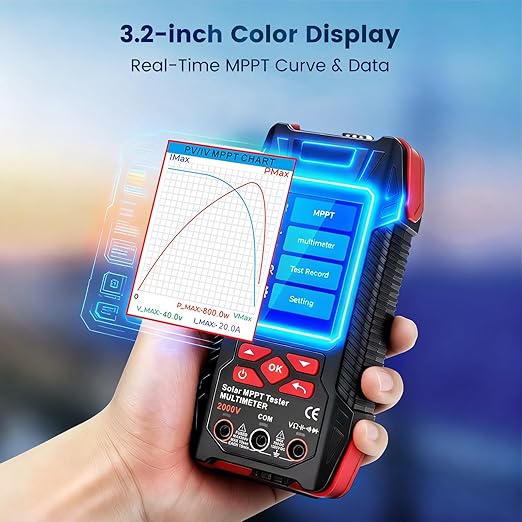

All-Round Safety Protection & User-Friendly Design - Built with robust protection against overvoltage, overcurrent, reverse polarity, and overtemperature to safeguard the tester and connected PV systems. Features a 3.2-inch 240*320 high-resolution color display showing all results on one screen for easy reading. Powered by a 1500mAh rechargeable lithium battery with low-battery detection, auto power-off, and adjustable brightness/sound settings for enhanced usability in field work.

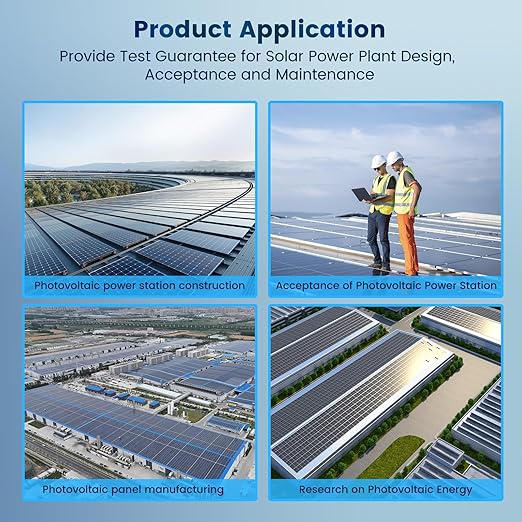

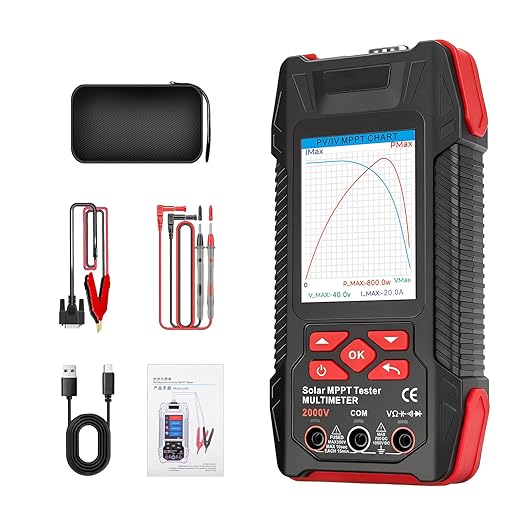

Multi-Scene Application & Complete Accessory Kit - Ideal for PV module production, on-site acceptance, and field maintenance, enabling rapid fault diagnosis for solar systems. Comes with a full set of accessories: solar test clip, multimeter test leads, USB cable, storage bag, and English user manual—ready to use out of the box. Automatic test data saving and intuitive operation reduce workflow complexity for solar installers, technicians, and PV manufacturers.
