About This

• Efficient MPPT Solar Charge Controller: The 30A charging controller adopts an industrial-grade main control chip, which enables the MPPT tracking efficiency to reach up to 99.9% (continuously detecting during the charging process, bidirectional focusing tracking, and automatic focusing tracking for charging). Compared with conventional solar charging controllers, the overall charging efficiency is increased by 15-30%. Moreover, the controller is equipped with an internal anti-backflow circuit and generates extremely low heat, ensuring the normal operation of the system.
• Matching Battery Type: The 30A MPPT controller is only applicable to various lead-acid batteries (including open, sealed, AGM batteries, etc.). If charging lithium batteries, one must be very familiar with their battery characteristics. After connection, the charging parameters must be set properly before use.
• Automatic Recognition of 12V/24V: This 30A solar panel controller automatically recognizes 12V/24V. When installing for the first time, please ensure that the battery has sufficient voltage so that the controller can identify it as the correct battery type.
• 8 Reliable Protections: This MPPT 30A charging controller features multiple protections, such as overcurrent protection, short circuit protection, open circuit protection, reverse connection protection, overload protection, overcharge protection, undervoltage protection, and overvoltage protection. All of these are self-recovering types, which will not damage your controller and ensure the safe and stable operation of your system. It has a complete three-stage MPPT charging management system, which can improve system efficiency. Extend battery life.

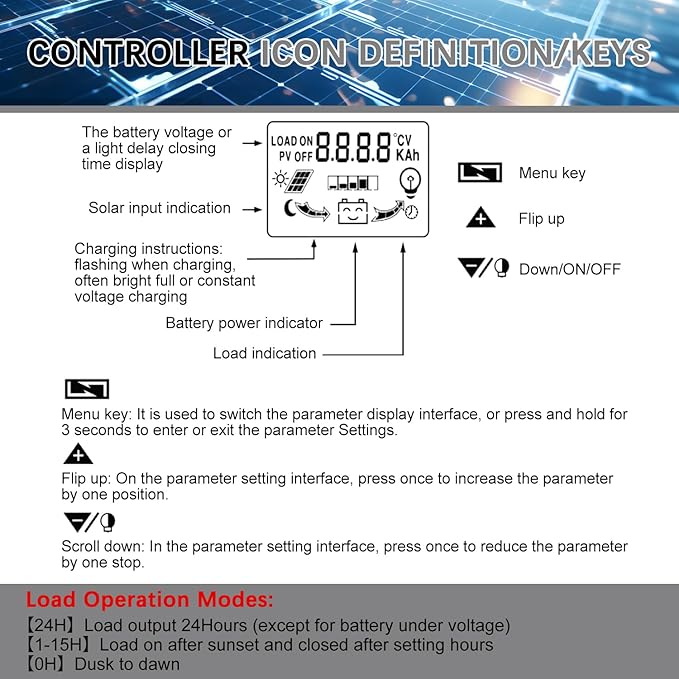

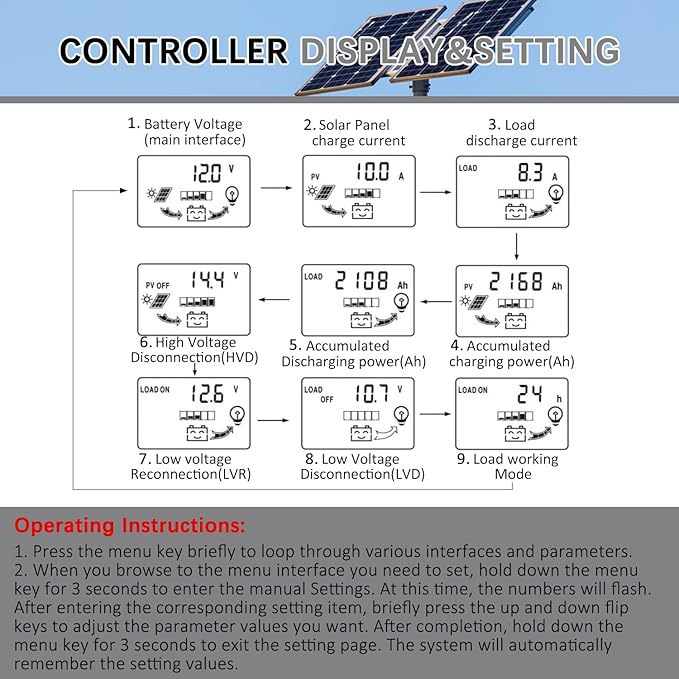

• Easy-to-read Display Screen: The intuitive LCD screen can display the charging status, data, switch mode and parameter configuration. You can view the charging and discharging current in real time, the cumulative generated and discharged electricity, temperature display, light control and delay control, etc. Parameters can be adjusted, battery types changed, and the controller is equipped with functions such as power-off memory.
• 3 Load Modes: The 30A solar panel controller is equipped with three load operation modes, namely:【24H】Load output 24Hours (except for battery under voltage)；【1-15H】Load on after sunset and closed after setting hours；【0H】Dusk to dawn. You can choose the mode according to your needs.
• Battery Type: b1 represents lead-acid batteries (12V/24V automatic recognition); b2 represents lithium-ion batteries (3 series 11.1V lithium batteries); b3 represents lithium iron phosphate batteries(4 series 12.8V). The default factory setting is b1.
• Dual USB Output: The 30A controller features two USB output ports on its surface, with a maximum current of 2A, supporting charging of devices such as mobile phones, headphones, and tablets.
• Wide Range of Application Scenarios: This 30A MPPT solar panel battery charging controller can be used in various places such as homes, industries, and commercial areas. It is an ideal choice for solar panels on rooftops, recreational vehicles, ships, camping, and street lamps. This controller will generate heat (low heat output) when in operation. Please ensure that the controller is installed on a flat and well-ventilated surface.
• Technical Support and Sales Services: The TCEUMIK 30A MPPT solar charging controller comes with instructions for use. Please install and use it in accordance with the instructions. In addition, we offer a 12-month quality guarantee and technical support. If you have any quality issues with our products, please feel free to contact us at any time.
