About This

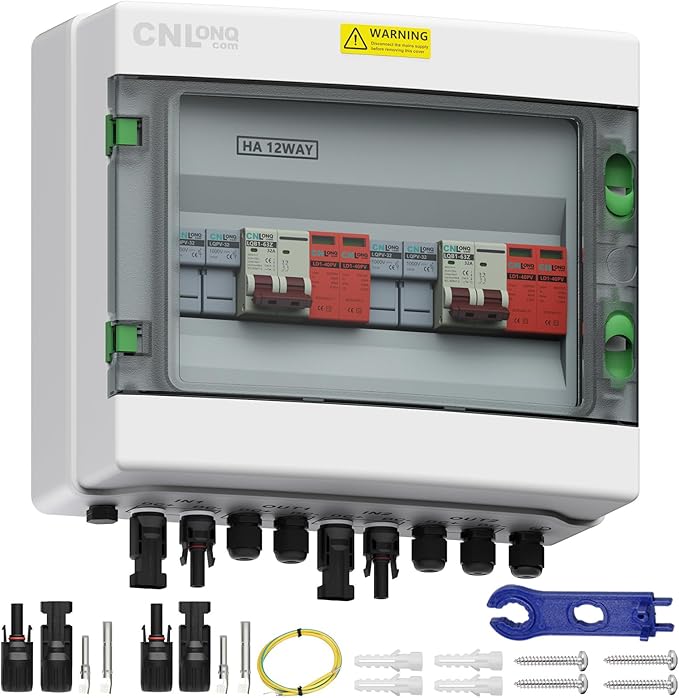

[2 Input 2 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 20kW of power in a 500V system. The device has a maximum input current of 20A per string and a maximum output current of 32A per string and provides overvoltage, overload and quick disconnect features to ensure the safety of the PV system

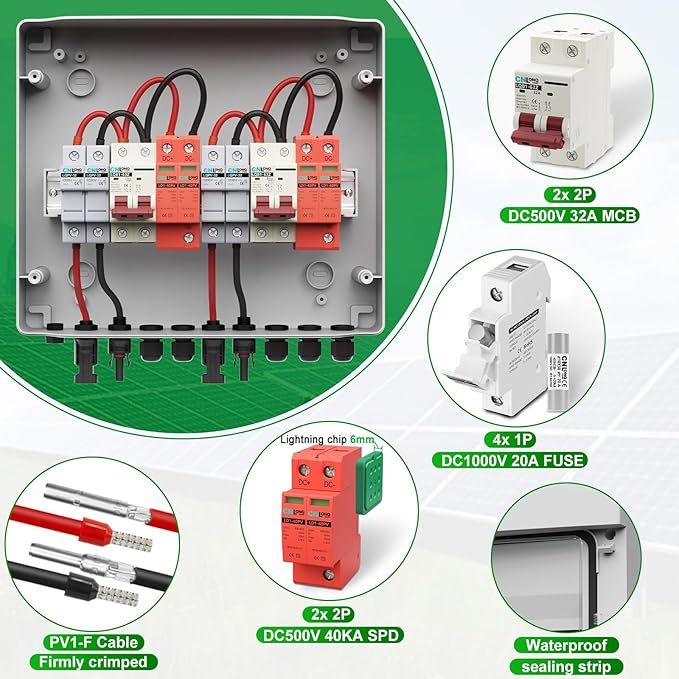

[MCB+SPD+FUSE]: CNLonQcom's PV Combiner Boxes are equipped with 32A DC500V circuit breakers, DC500V T2 surge protectors and 20A DC1000V fuses. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection

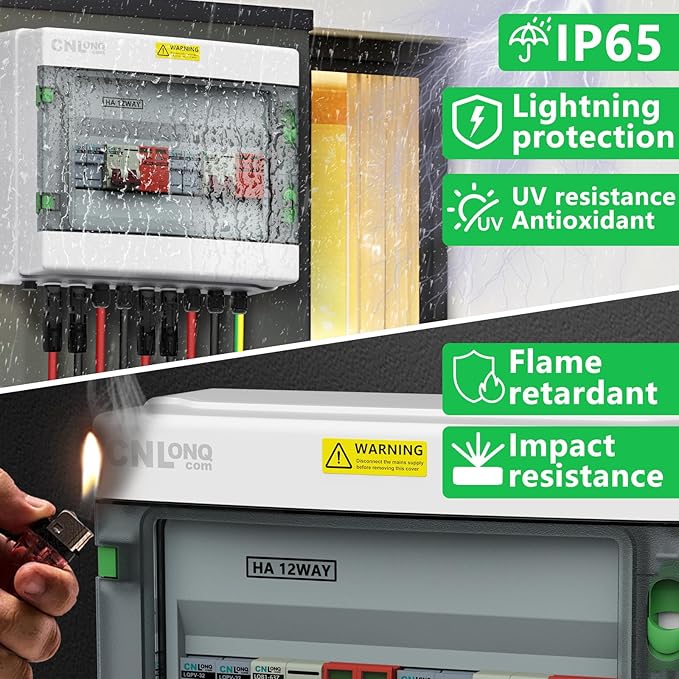

[Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain

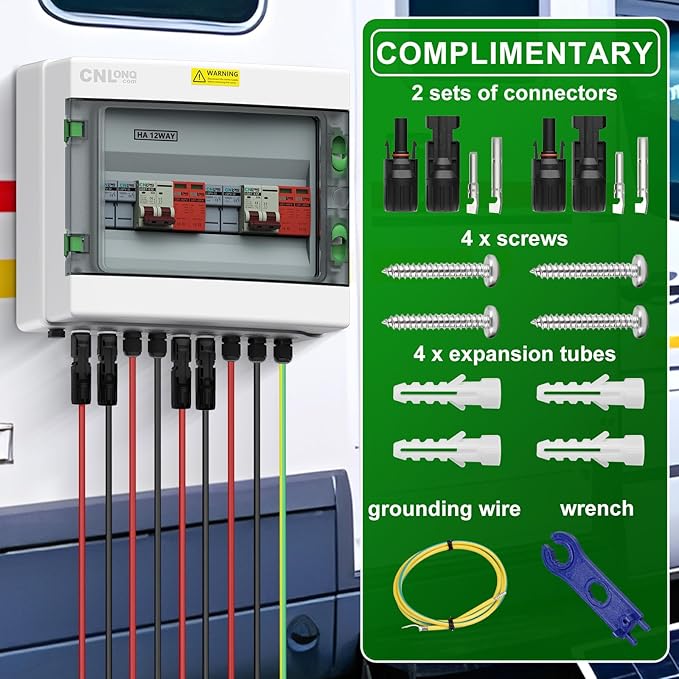

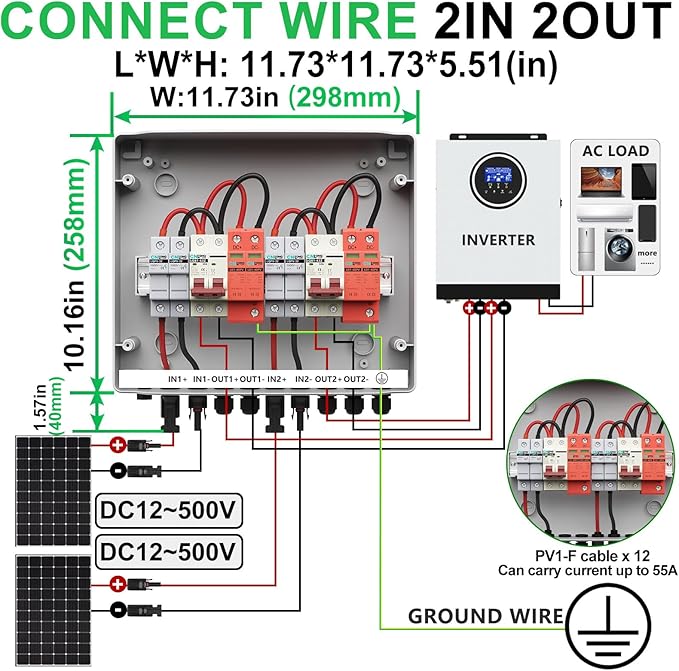

[Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
[Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 720W in a 12V system, up to 1440W in a 24V system, and up to 2880W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects
