About This

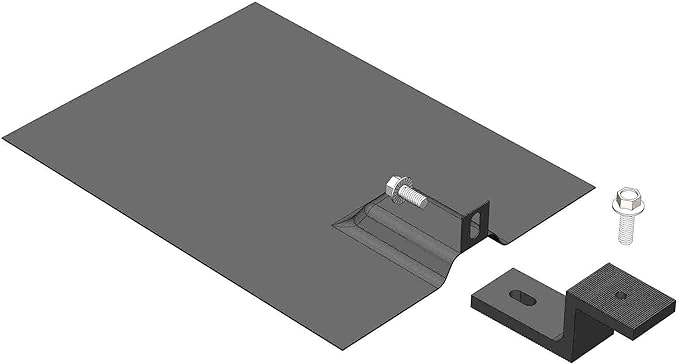

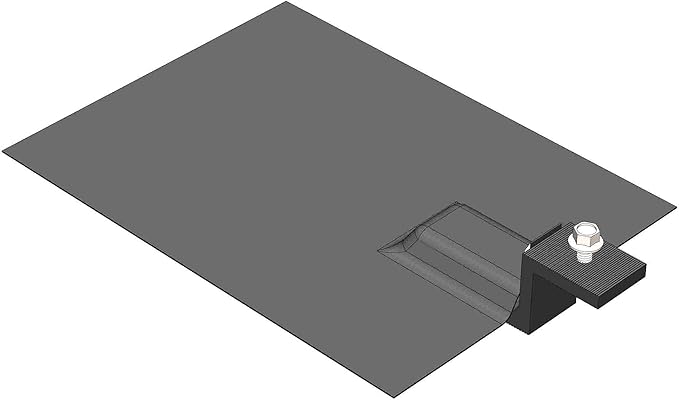

• Magerack Z bracket with flashing can be used for solar installation on sloped residential composition shingle roof compatible with most common rails
• Extremely easy to install at lowest cost
• Compatible with most common rails from rail manufacturers
• 571 lbs uplift and 536 lbs downforce
• The vertical slot is for up to 3/8" bolt, through which the bolt is attached to rail
• Z bracket are made of aluminum alloy 6063-T5 and flashing is made of aluminum sheet 3003 H14.
• Patented flashing design, absolutely waterproofing

Overview

• Color : Black
• Brand : Magerack
• Material : 10 Black Z foot with Flashing
• Item dimensions L x W x H : 12 x 9 x 3.5 inches
• Unit Count : 10.0 Count
