DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount

DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount

$27.79
Skip to product information
DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
  • DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount
DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount

DC Miniature Circuit Breaker 100 Amp Solar Disconnect Switch DC1000V AC400V 2P MCB for PV, UPS, RV Battery, DIN Rail Mount

$27.79

About This

  • 【100A Solar Breaker】Built-in arc extinguishing magnet for high arc extinguishing and sectional capacity up to 6kA.Flame retardant and UV resistant PA case, silver alloy contacts and ample pure copper coils ensure reliable overcurrent and short circuit protection
  • 【Functions】Isolation, short circuit protection, overload protection, C-curve tripping, thermal magnetic tripping, can be used for 12V-1000VDC circuits

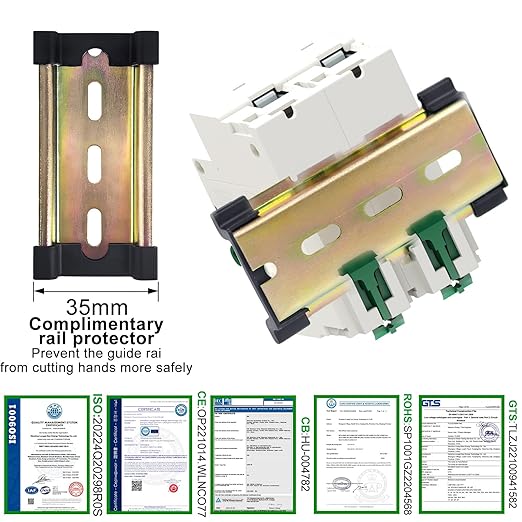

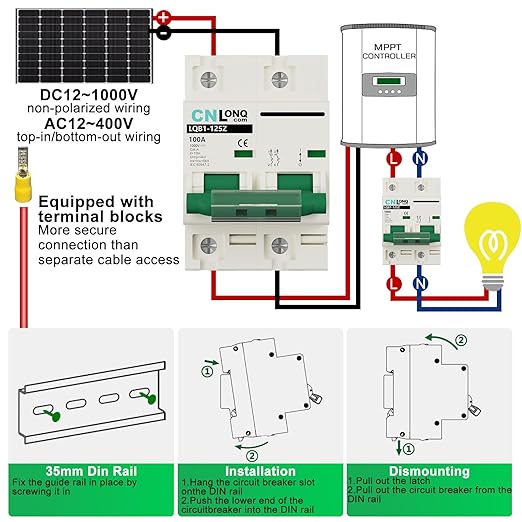

  • 【Installation and Wiring】 Support quick mounting on DIN rail. Supports non-polarised wiring in DC systems, and is equipped with a wiring terminal for more secure wiring connections

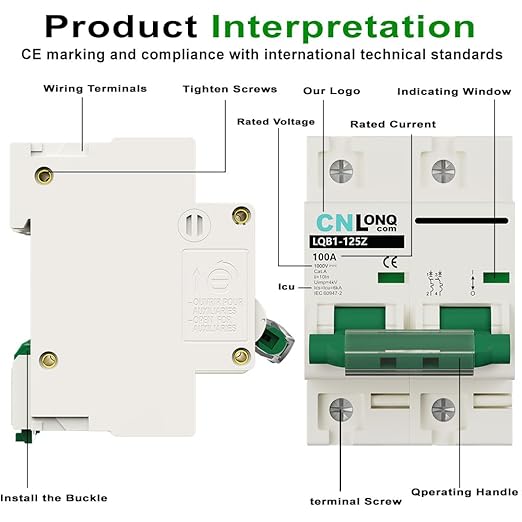

  • 【Visual Window】Displays the operating status of the circuit breaker, red means on, green means off

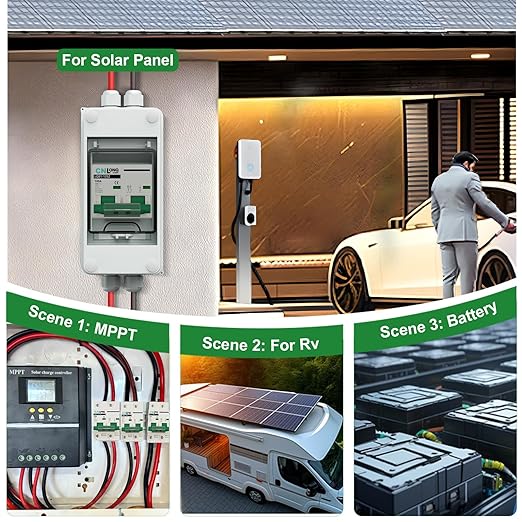

  • 【Application】CNLonQcom circuit breakers are suitable for solar panel arrays, solar charge controllers, inverters, RVs, grid-tied, off-grid, home and other PV DC systems. Can also be used in AC systems

Overview

  • Brand : CNLonQcom
  • Current Rating : 100 Amps

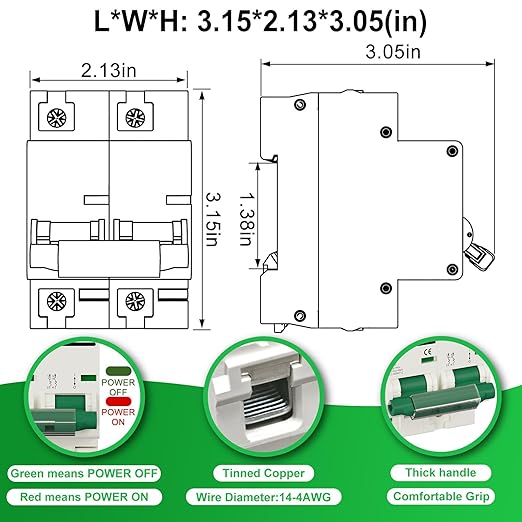

  • Product Dimensions : 3.15"D x 2.11"W x 3.05"H
  • Circuit Breaker Type : AFCI
  • Mounting Type : DIN Rail Mount
