NanQue DC Solar Panel Circuit Breaker PV System Disconnect Switch and Protector 60-250 Amp 36-600 Voltage Automatic Cut Off Circuit 2 Poles Non-Polarized 25kA Recycle Use Fuse Siver Contactor (250A)
$119.00
Skip to product information
NanQue DC Solar Panel Circuit Breaker PV System Disconnect Switch and Protector 60-250 Amp 36-600 Voltage Automatic Cut Off Circuit 2 Poles Non-Polarized 25kA Recycle Use Fuse Siver Contactor (250A)
$119.00
About This

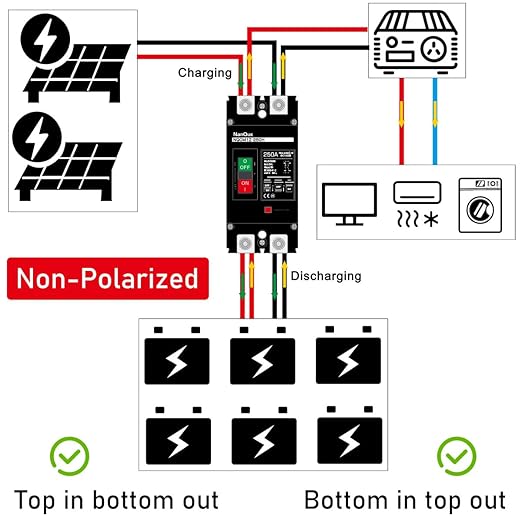

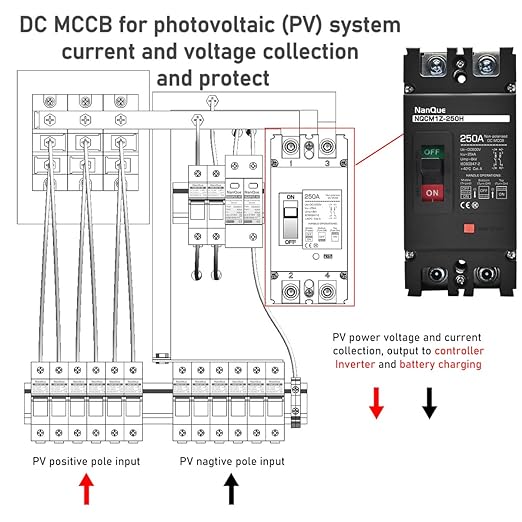

- Designed for DC power application: pv photovoltaic, Generators power, wind power, EPS UPS battery application, car chargers etc.
- Protection: short circuit protect, overload protect, isolation switch functions.

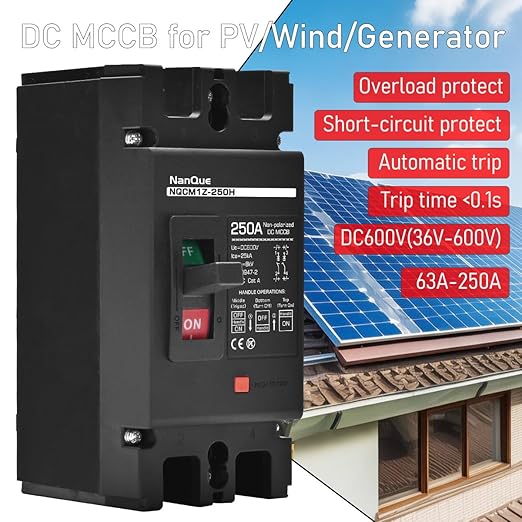

- Working voltage and current: max 600V voltage and 250A normally current load, can also customize max 630Amp.

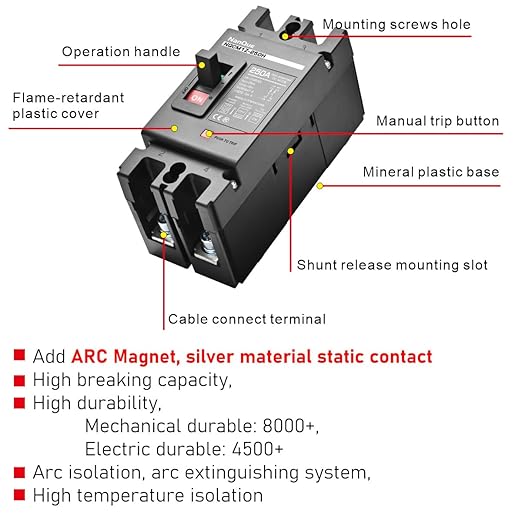

- Add ARC Magnet and silver material static contact: Increasing 2000+ times circuit breaker electrical durability life, increasing DC power’s short circuit breaking capacity up to 25kA.
- Add arc isolation plate: ensure DC positive and negative lines arc isolation.Supports power on/off under load, can be recycle used.
Overview
- Brand : NanQue
- Current Rating : 250 Amps
- Product Dimensions : 4.1"D x 2.91"W x 6.5"H
- Circuit Breaker Type : Standard

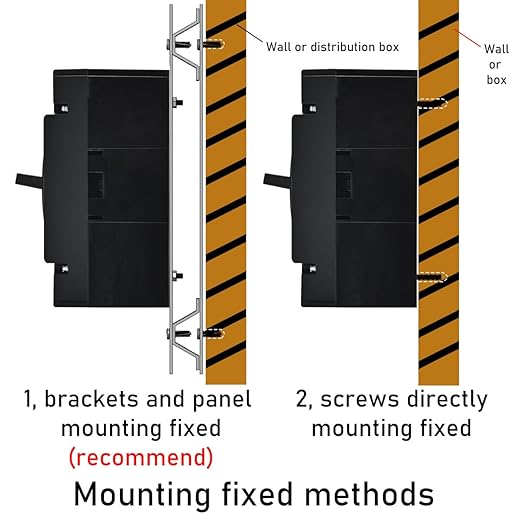

- Mounting Type : Screw Mount
