40 Amp Isolator Switch AC 690V IP66 Waterproof Isolation PV Disconnect Switch On Off Rotary Switch 4 Pole 4-Ways

40 Amp Isolator Switch AC 690V IP66 Waterproof Isolation PV Disconnect Switch On Off Rotary Switch 4 Pole 4-Ways

$64.73

About This

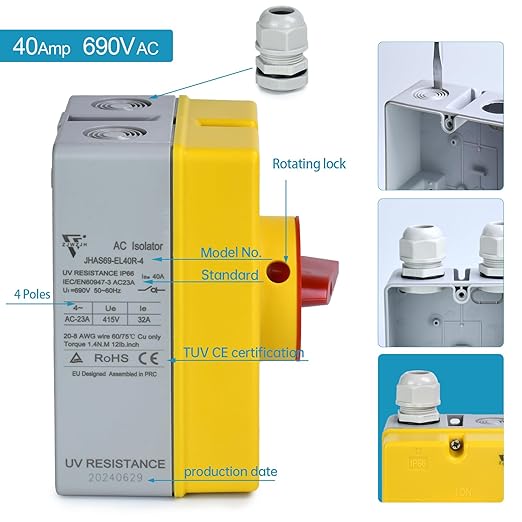

  • 【Main Performance】Disconnect box switch rated insulation voltage Ui：40Amp 690V AC, 4 Poles. Our Disconnectors Switch through RoHS TUV and CE certification. Flame retardant PC material shape has good insulation and high temperature resistance.

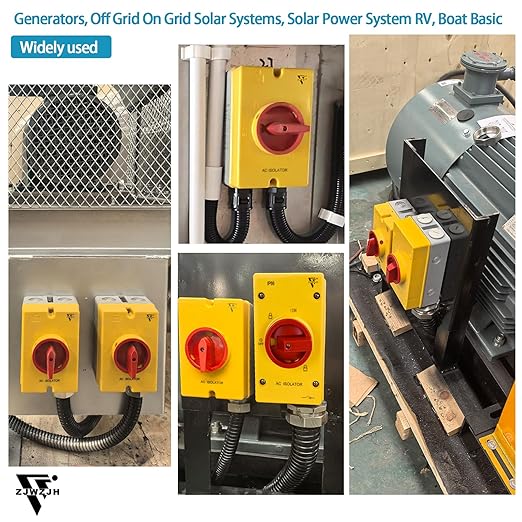

  • 【APPLICATION】 Isolation switch is widely used in machinery and various electrical appliances, and can effectively solve the problems of emergency disconnection.

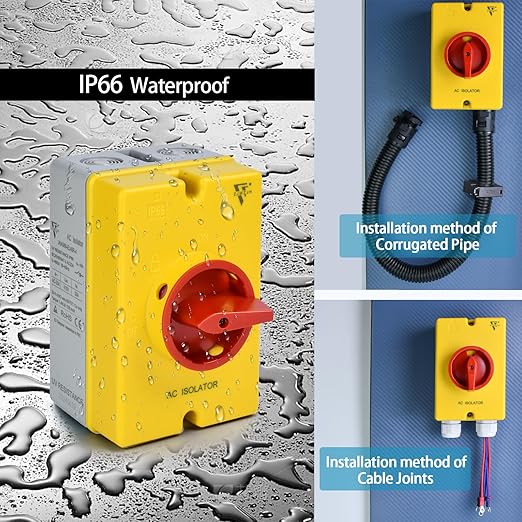

  • 【Protection Grade】 IP66 waterproof disconnect switch box for indoor/outdoor use offering a level of protection from corrosion, windblown dust and rain, splashing water and hose directed water.
  • The rotating handle can be used for hanging locks.This switch has a load breaking up to 10 times the rated current, making it ideal for motor isolation.

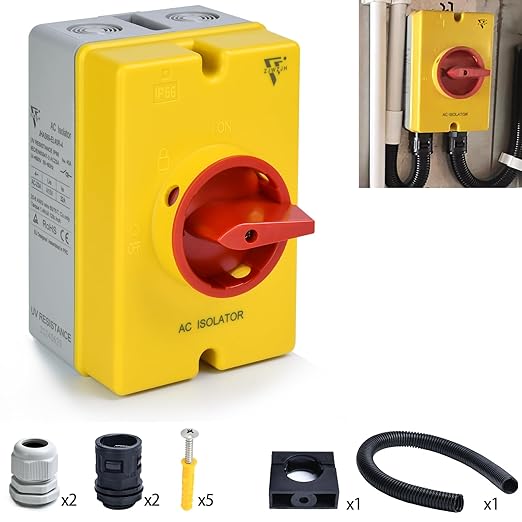

  • 1 x Switch Disconnectors; 6x Screw; 2x cabie connectors; 2x corrugated pipe joint; 1x corrugated pipe ( 60cm/2.36in).

Overview

  • Operation Mode : ON-OFF
  • Current Rating : 40 Amps
  • Operating Voltage : 690 Volts (AC)
  • Contact Type : Normally Open
  • Connector Type : Screw
  • Brand : ZJWZJH
  • Switch Type : Rotary
  • Terminal : Screw
  • Material : Plastic
  • Circuit Type : 4-way
