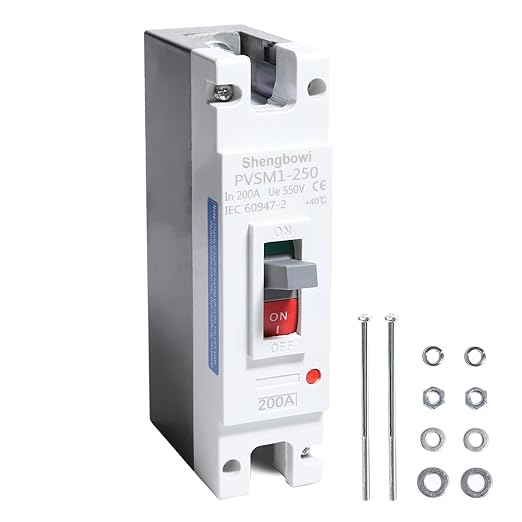

Main DC 200 Amp Circuit Breaker AC Disconnect Switch 1 Poles 550V Battery Thermal Magnetic Trip Power Solar UPS Station
$52.48
Skip to product information
Main DC 200 Amp Circuit Breaker AC Disconnect Switch 1 Poles 550V Battery Thermal Magnetic Trip Power Solar UPS Station
$52.48
About This

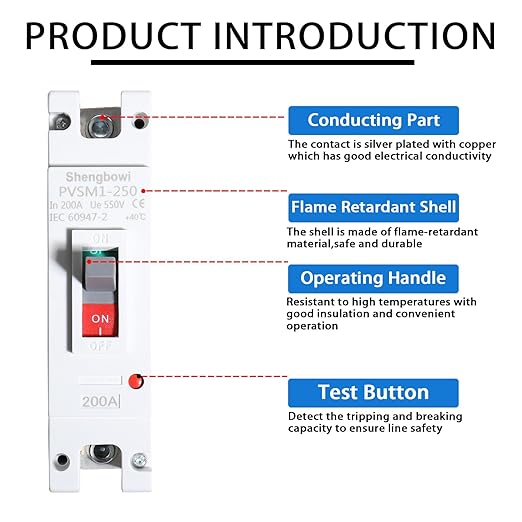

- Function: Thermal Magnetic Trip, circuit overload protection, isolation circuit, circuit short circuit protection

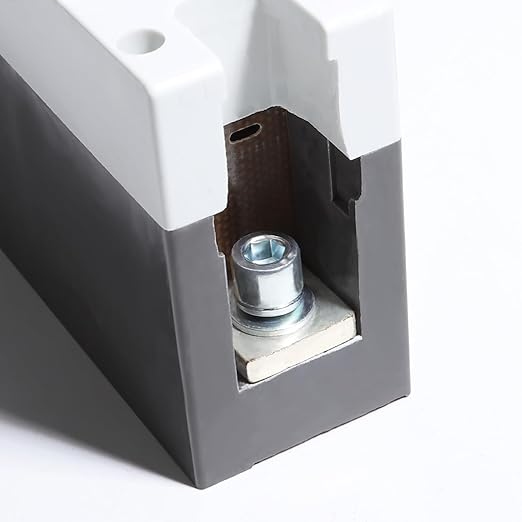

- 30% silver content in moving contacts, 45% silver content in stationary contacts

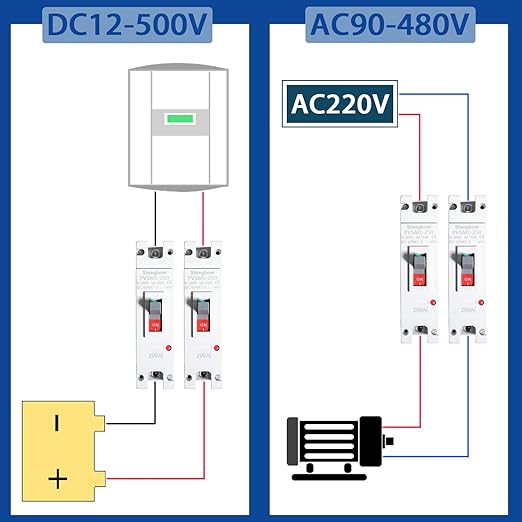

- Working voltage: DC 12V~500V AC 90~480V short-circuit breaking capacity 25kA
- It needs to be installed on the panel through screws
- Suitable for DC application such as photovoltaic / UPS / battery / Datacenter etc.
Overview
- Brand : shengbowi
- Current Rating : 200 Amps
- Circuit Breaker Type : Standard
- Mounting Type : Unit Mount
- Number Of Poles : 2
