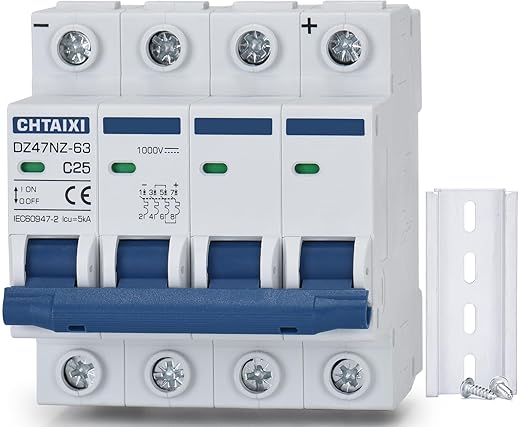

DC Miniature Circuit Breaker, 4 Pole 1000V 25 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount DC Disconnect Switch C25
$34.98
Skip to product information
DC Miniature Circuit Breaker, 4 Pole 1000V 25 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount DC Disconnect Switch C25
$34.98
About This

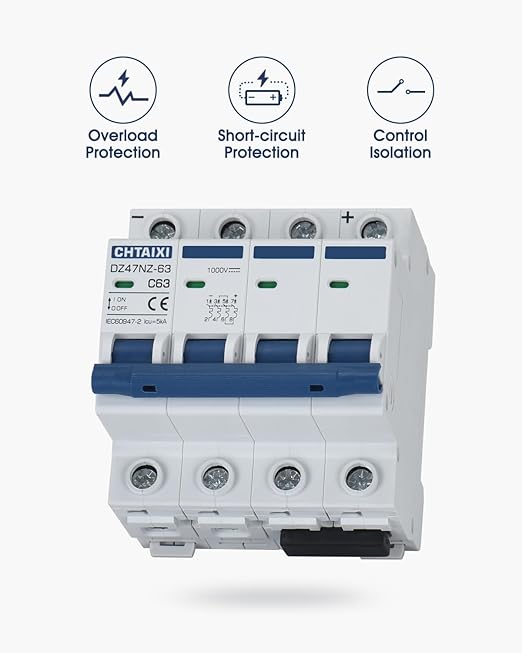

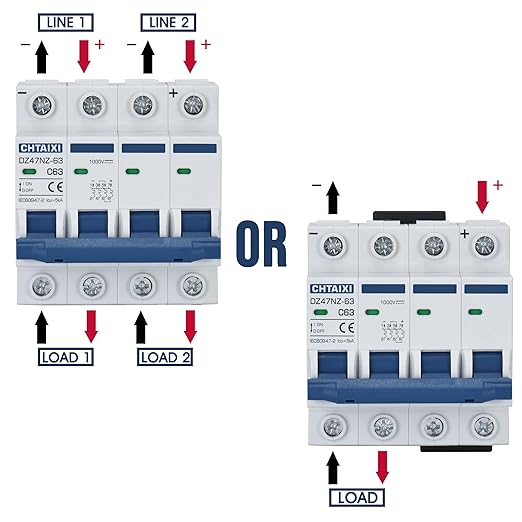

- FUNCTIONS: Used to protect Single line or Two line power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- ARC EXTINGUISHING: These DC miniature circuit breakers have a more powerful arc extinguishing magnetic system to help extinguish arcs.

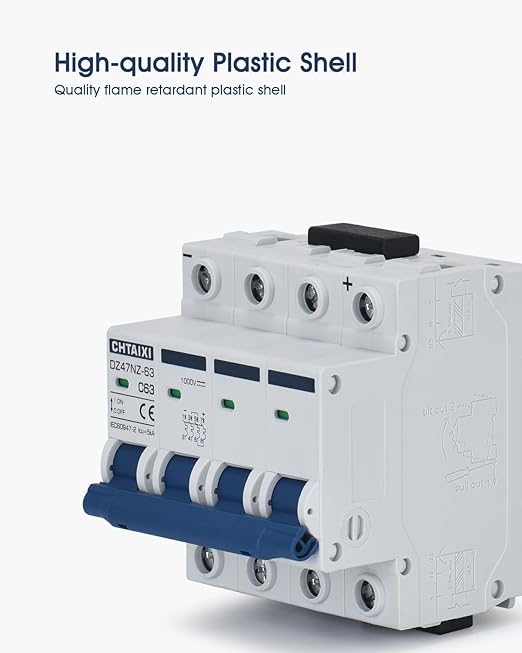

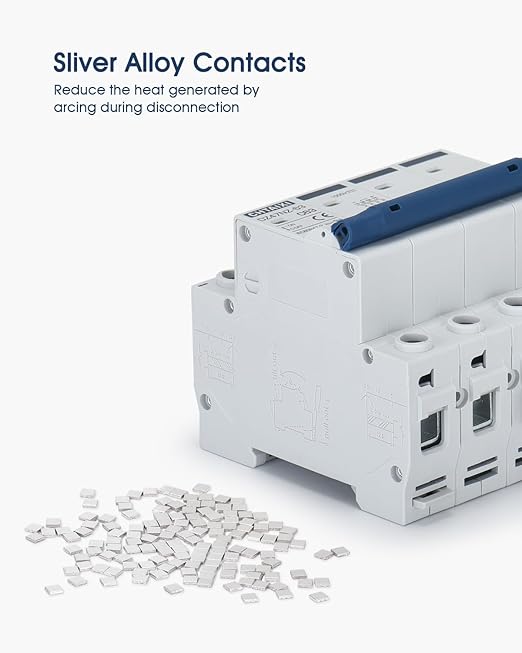

- QUALITY: Silver alloy contacts, flame retardant material shell, color indicators.
- APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.
- INSTALLATION: 35mm DIN rail mount, Screw clamp wires(soft silicone wire needs to crimp fixed the wire end with copper crimp first).
Overview
- Brand : CHTAIXI
- Current Rating : 25 Amps

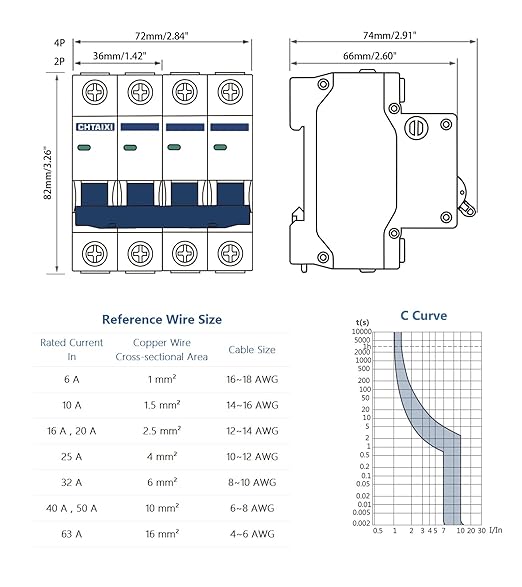

- Product Dimensions : 2.95"D x 2.84"W x 3.17"H
- Circuit Breaker Type : Standard
- Mounting Type : DIN Rail Mount
