20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)

20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)

$36.73
Skip to product information
20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
  • 20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)
20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)

20A Rotary Changeover Switch with Key Lock, 660V 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC, Universal Selector Switch with Waterproof Enclosure (3 Positions 2 Poles w/Key)

$36.73

About This

  • 【Parameter】Ui: 660V, Ith: 20A
  • 【Function】Per position locked upon remove the Key

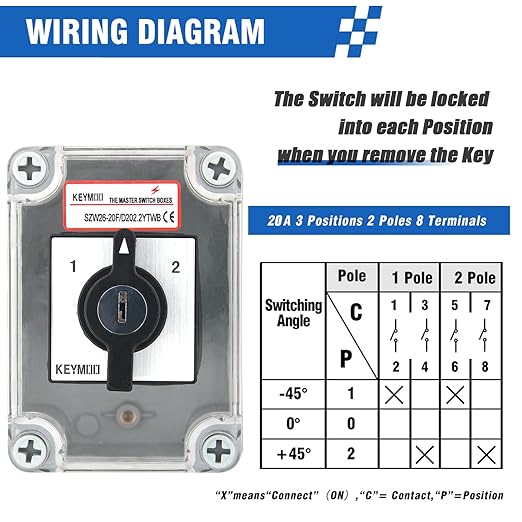

  • 【3 Positions】1-0-2 = ON-OFF-ON, 2 Poles, 8 Terminals

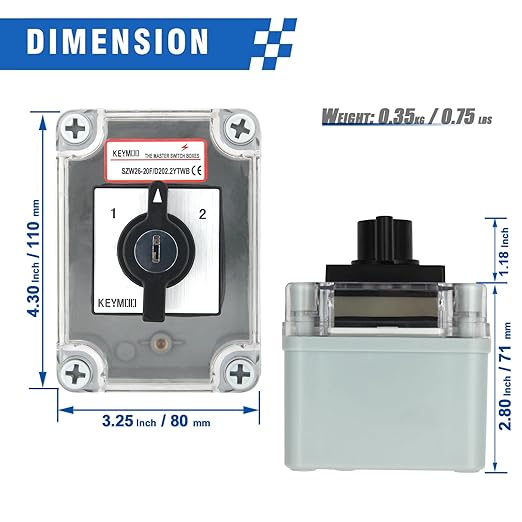

  • 【Overall Size】4.3 In. x 3.25 In. x 3.98 In. 【Weight】0.75 lbs 【Max Wire Cable size】14AWG
  • 【What You Get】Cam Switch with case, Keys, MANUAL

Overview

  • Operation Mode : ON-OFF-ON
  • Current Rating : 20 Amps
  • Operating Voltage : 660 Volts
  • Contact Type : 2no 2nc
  • Connector Type : Crimp
  • Brand : Keymoo
  • Switch Type : Rotary
  • Terminal : Screw
  • Material : Plastic
  • Item dimensions L x W x H : 4.3 x 3.25 x 3.98 inches
