About This

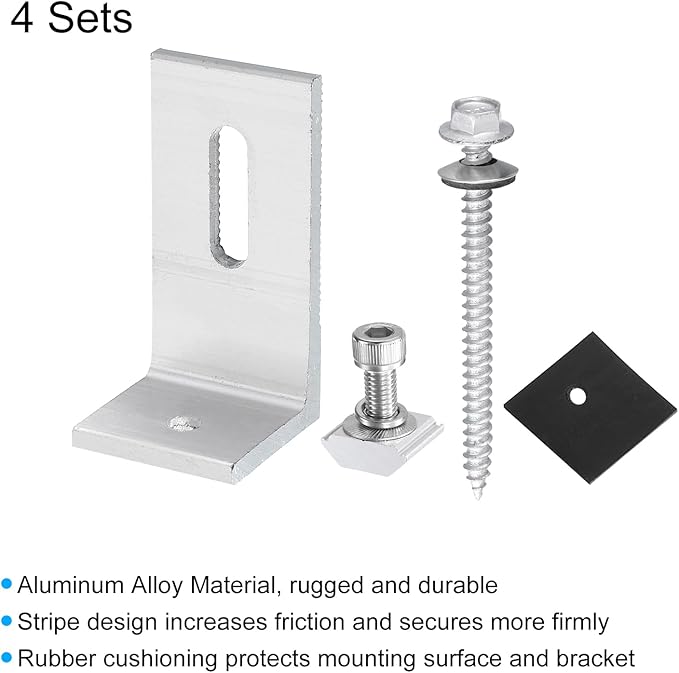

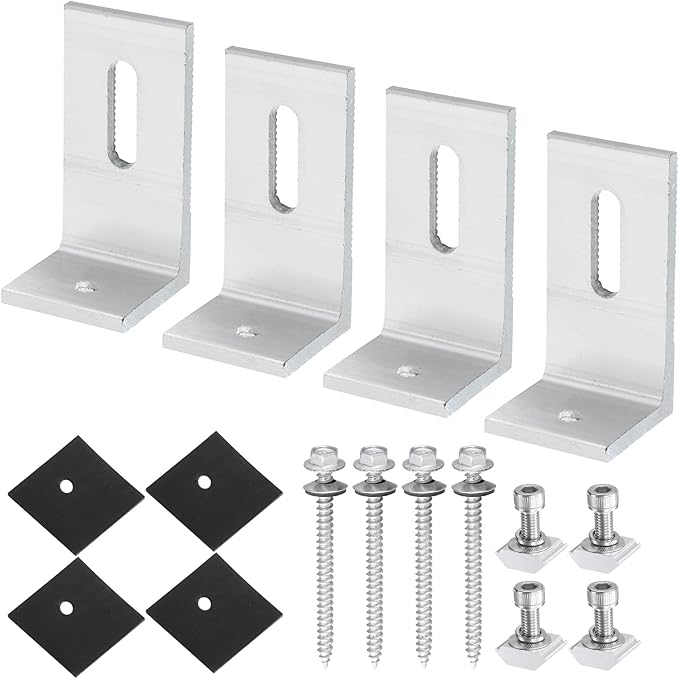

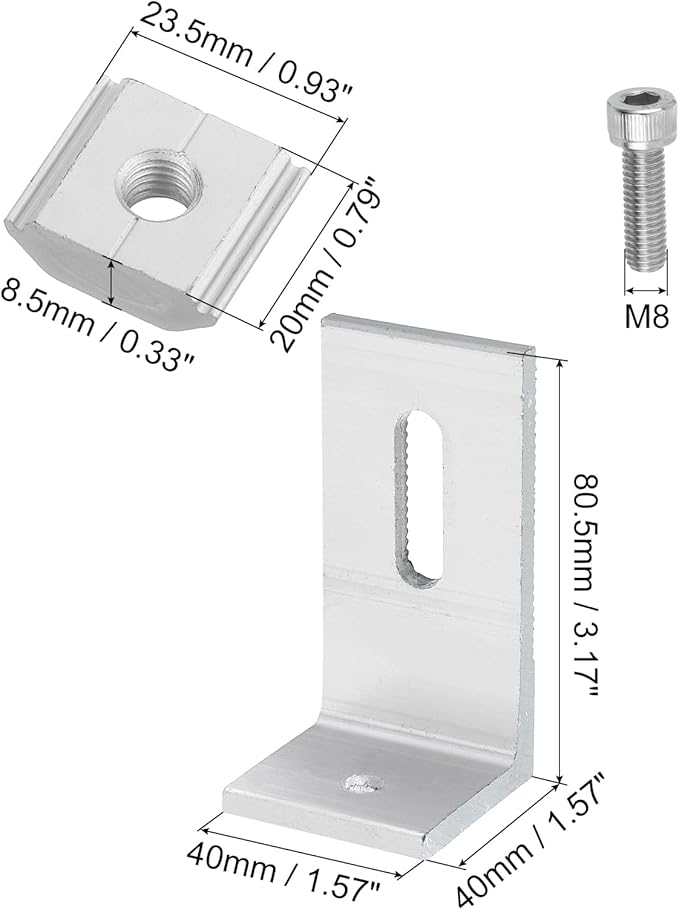

Product Parameters: Package contains 4pcs solar panel mounting L-brackets, 4 sets of expansion screws and rubber pads; L-bracket total size: 40 x 40 x 80.5mm/1.57 x 1.57 x 3.17 inch(L x W x H), screw nut size: 23.5 x 20 x 8.5mm/0.93 x 0.79 x 0.33 inch(L x W x H), thread size: M8 x 1.25.
Material: Made of aluminum alloy, light weight, sturdy and durable, with excellent anti-corrosion and anti-rust properties, can work in hot, cold or humid environments, and has a long service life.

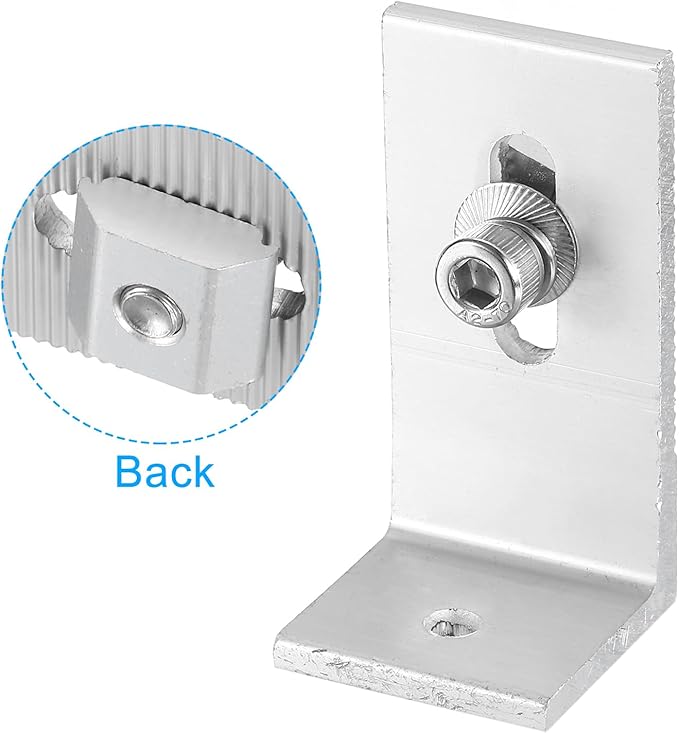

L-Shaped Bracket: The bracket adopts a stripe design on the nut end to increase friction and fix the solar panel more firmly. The matching rubber pad can cushion the bracket and mounting surface and protect the mounting surface and bracket.
Easy Installation: Use a suitable hex wrench (not included) to attach the bracket to the solar panel, then use screws to secure the bracket to the mounting surface. Place a rubber block between the bracket and mounting surface to add cushioning to protect the bracket and mounting surface.

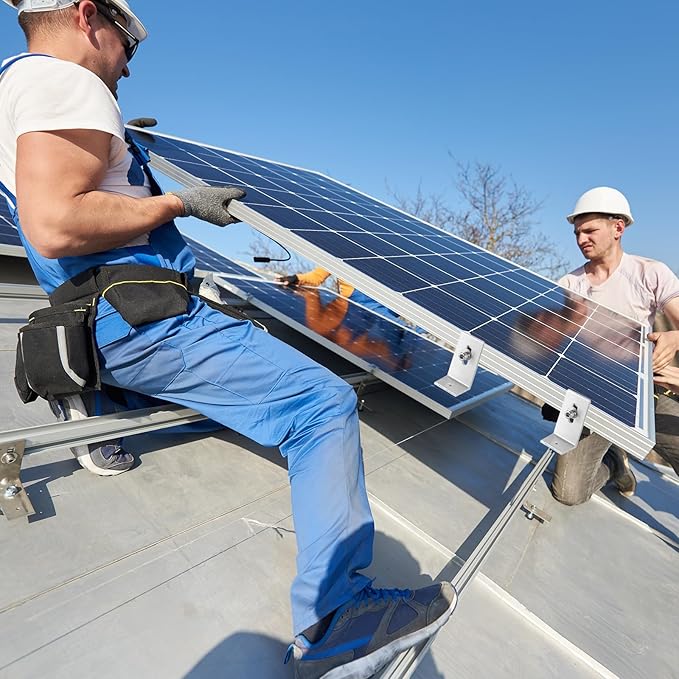

Wide Application: Solar panel L-shaped bracket is used for solar panel installation, which can be installed on RVs, roofs, trailers, yachts, boats, etc.
