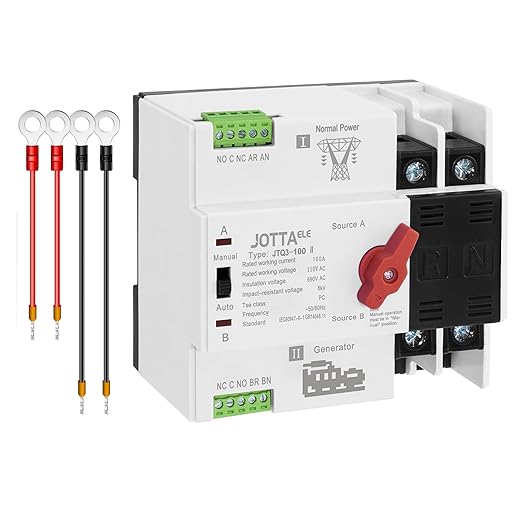

★【Product Introduction】Jottaele automatic transfer switch for generator,this ATS has the function of sending a self starting signal to the generator,which means it can start the generator automatically,it can work perfectly with most generators.

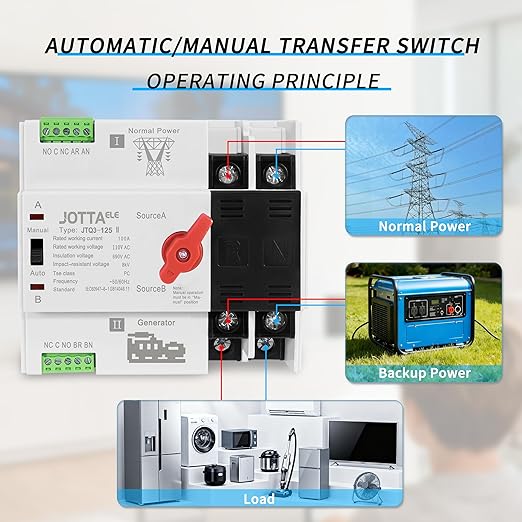

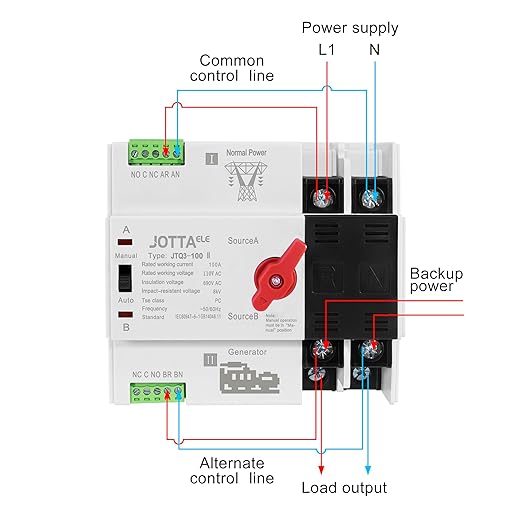

★WORKING PRINCIPLE:Dual power automatic transfer switch———you can connect two power source：one power source as normal power, and the other one as reserve power. The normal power usually be city power and reserve power is generator.When normal power goes off, the ATS will transfer to reserve power to make power continuous, transfer speed is about 50ms,when the normal power is back,ATS will transfer back to normal power automatically.So it can bring convenience to life and eliminate the trouble of power outages.Make continuous power supply, uninterrupted power supply.
★WORKING MODE OF ATS: There are two working mode of this ATS: "AUTO"and "MANUAL".If you need this device transfer automatically,please set the mode switch to "Auto",then when the normal power goes off, the ATS will transfer to reserve power automatically, when normal power goes back, it will transfer back to normal power automatically.If put button to "Manual" side, you need to manually turn the handle in the middle to make power transfer.The power supply status is "ON-ON"

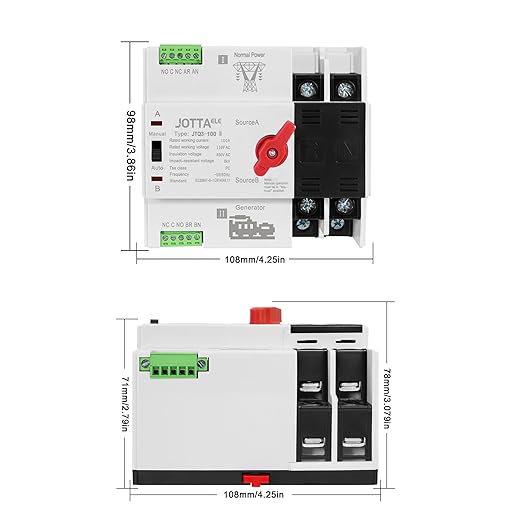

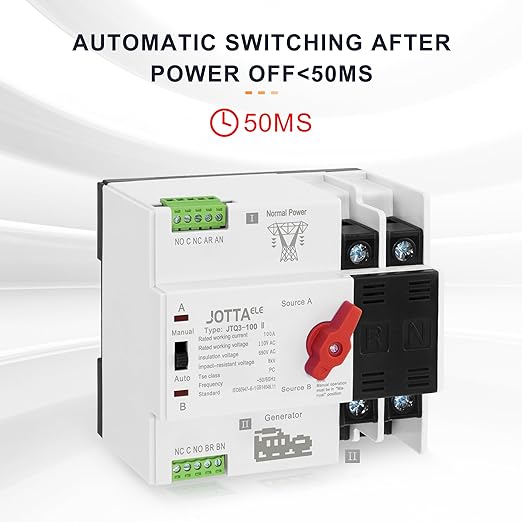

【Product Parameters】This ATS working current is 6-100A,working voltage is 110V ,50/60Hz.Transfer speed is 50ms.When voltage lower than 85V, it will transfer to another side power supply,if voltage over 130V,there is a risk of burning out. (PV Type with a over-under voltage protection)

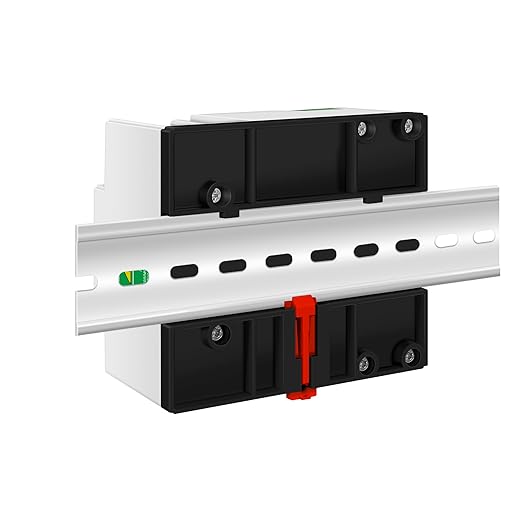

【Widely Used】Automatic transfer switch is suitable for situations where power outages cannot be sustained,can be used in household,shopping malls, hospitals, companies, factories,etc.Easy to install,din rail mounted and its small size suitable for PZ30 distribution box.
