HQRP Combo: 2-Pack Solar PV CFPV-32 DIN Rail Fuse Holder, 1-32Amp, 1000VDC and 3-Pack Photovoltaic Fast Acting Fuse Links CFPV-1038, gPV Type, 20 Amp 1000V DC, 10x38mm, 20kA IR, Solar PV Ceramic Fuses
$31.34
Skip to product information
HQRP Combo: 2-Pack Solar PV CFPV-32 DIN Rail Fuse Holder, 1-32Amp, 1000VDC and 3-Pack Photovoltaic Fast Acting Fuse Links CFPV-1038, gPV Type, 20 Amp 1000V DC, 10x38mm, 20kA IR, Solar PV Ceramic Fuses
$31.34
About This

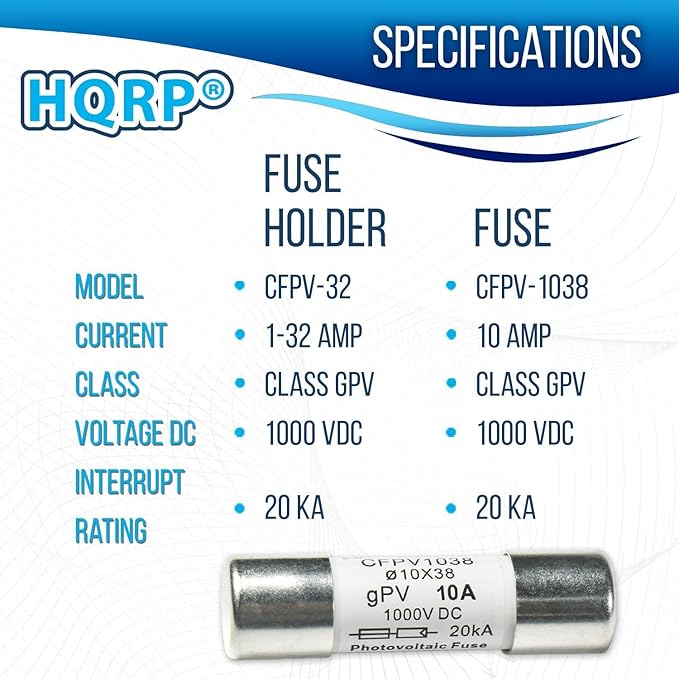

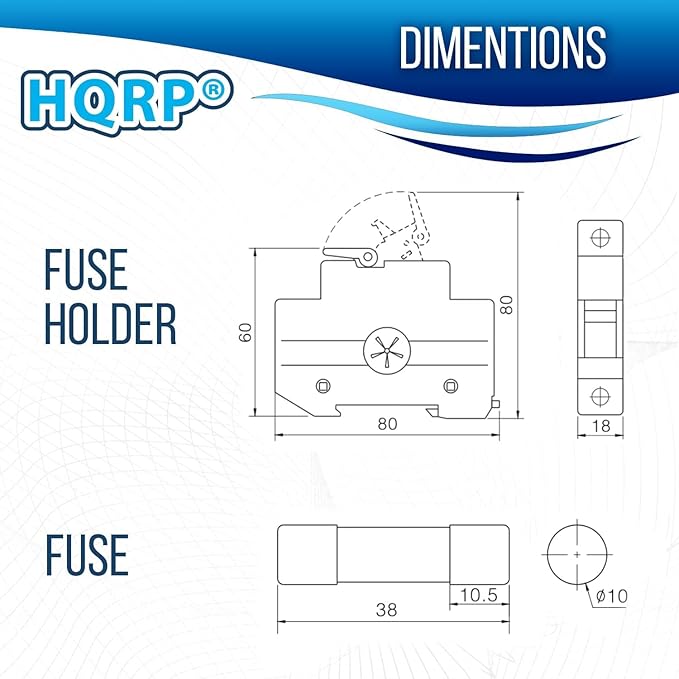

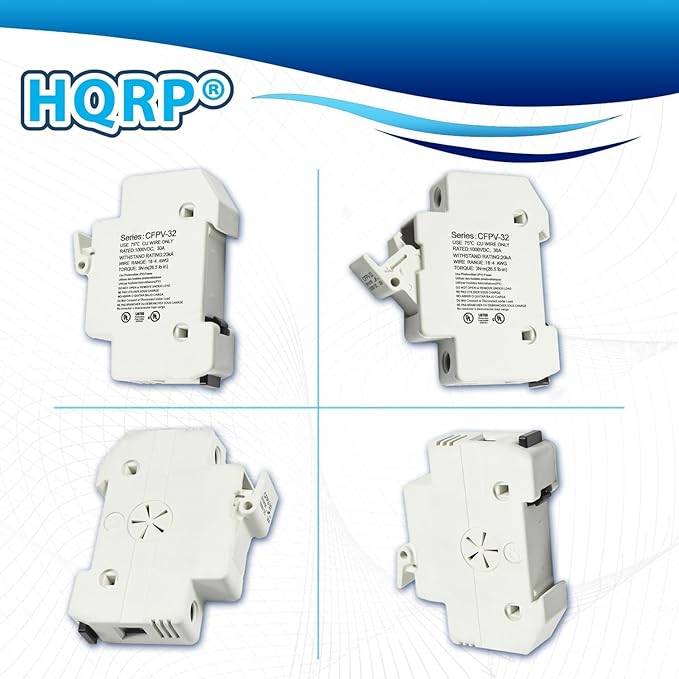

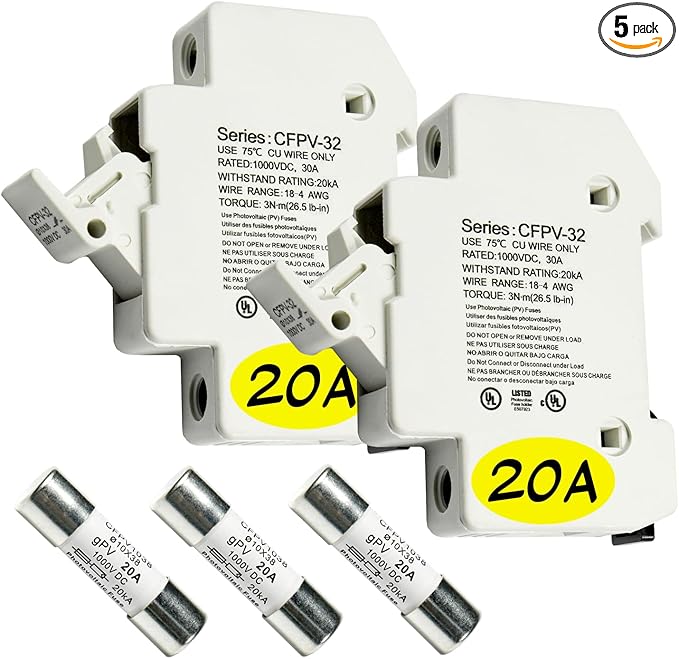

- HQRP® CFPV-32 fuse holder up to 32 Amp, 1000 VDC, Breaking Capacity 20kA. Dimensions of fuse holder: 3.15"x2.36"x0,71" (80x60x18mm). 200 Days warranty! The package includes two fuse holders and three fuses .
- HQRP® CFPV-1038 fuse link 20Amp, 1000 VDC, 20kA IR, fast blow (1-3ms), 10*38mm (0,4''x1,5''). Materials: high-strength ceramic body, pure silver fuse link element. Operating temperature: -40°C To +85°C
- HQRP® Our current-limiting fuses and fuse holder are commonly used in solar panels, combiner boxes, photovoltaic inverters, battery charge controllers, string cables, charging modules of electric vehicles
- HQRP® CFPV-32 1000 VDC solar panel fuse holder can also be integrated into photovoltaic modules, solar lighting, HVAC systems, elevators, machinery, PV module protection, charging stations
- HQRP® CFPV-32 and CFPV-1038 are certified by ISO. Approvals: UL Listed, IEC (gPV), TÜV and CE certifications, RoHS and REACH compliants.
