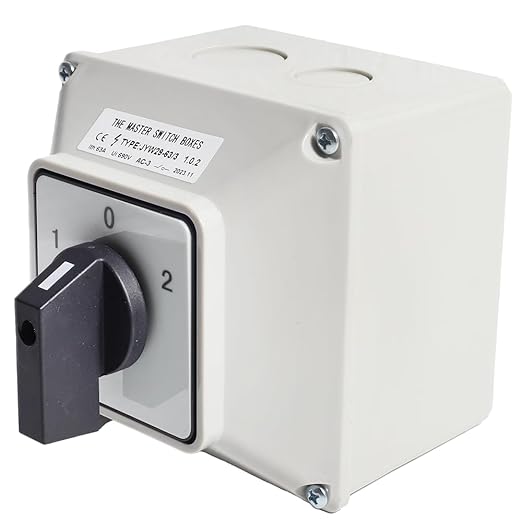

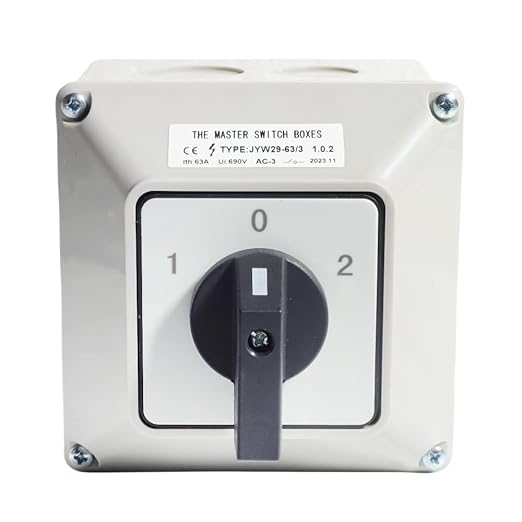

Universal Rotary Changeover Switch 690V 63A Cam Conversion Switch 3 Position 3Phase 12Terminal Main Switch Box JYW29-63/3 D303
$51.78
Skip to product information
Universal Rotary Changeover Switch 690V 63A Cam Conversion Switch 3 Position 3Phase 12Terminal Main Switch Box JYW29-63/3 D303
$51.78
About This
- 【Model】: JYW29-63/3
- 【Number of poles】: 3;Ui : 690V;Ith : 63A

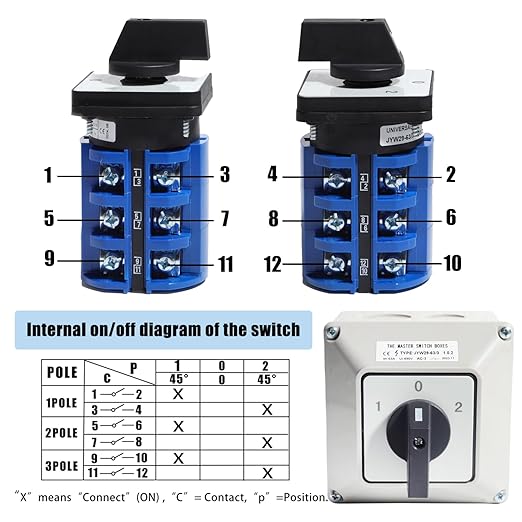

- 【Location】: 3 locations (1-0-2),12Terminal
- 【Overall dimensions】: 110 x 109 x 195mm/4.25 "x 4.2" x 7.7 "(length * width * height)
- 【Material】: Flame retardant PC material, resistant to high temperature; The contacts are made of copper which have good conductivity and oxidation resistance
- 【Product packaging】: 1 x conversion switch with waterproof outer box
Overview
- Operation Mode : ON-OFF-ON
- Current Rating : 63 Amps
- Operating Voltage : 690 Volts
- Contact Type : Normally Open
- Connector Type : Screw
- Brand : XINTAIHELE
- Switch Type : Rotary
- Terminal : Screw
- Material : Copper
- Circuit Type : 3-way
