About This

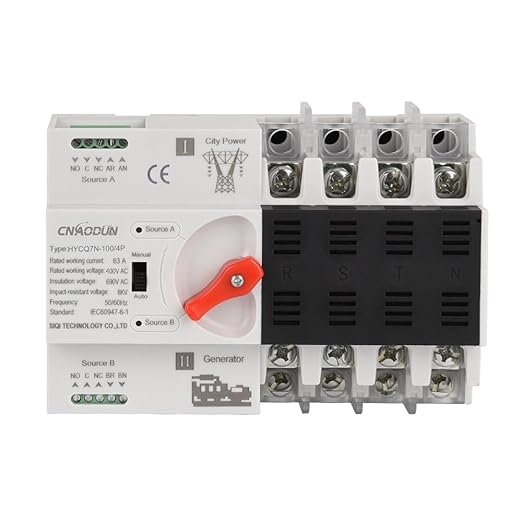

• ♥【What You Get】Package include: 1 x 4 Pole Automatic Transfer Switch 100A 400V

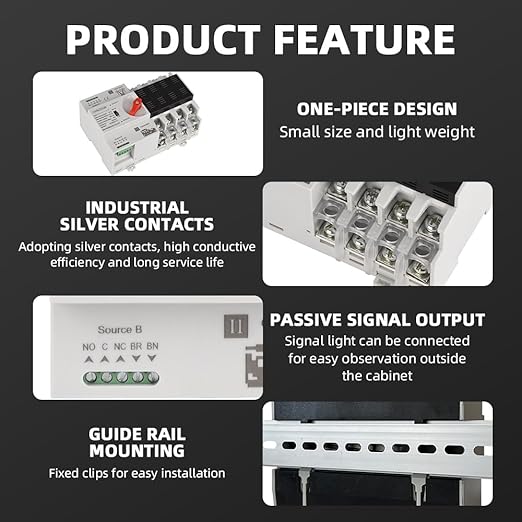

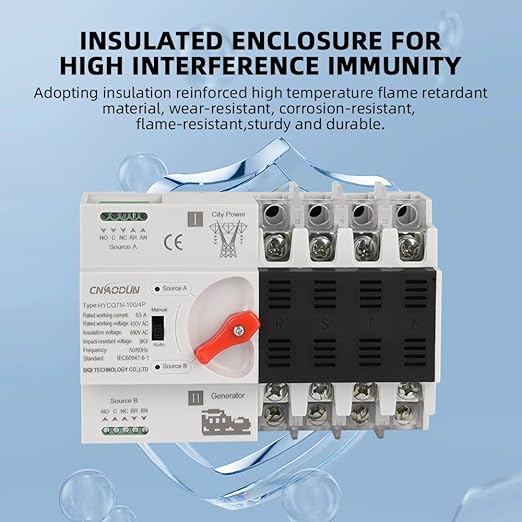

• ♥【Superior Quality】The switch housing is made of flame-retardant material, flame-resistant, rugged and corrosion-resistant. All-copper silver point contacts with good conductivity and high connection efficiency.
• ♥【Working parameters】Rated working current&voltage：100A/400V AC,50/60HZ.The coil can work normally at 85%-110% of the rated workingvoltage. Too low input voltage may cause the coil to heat up and burn.Switching time less than 50ms.

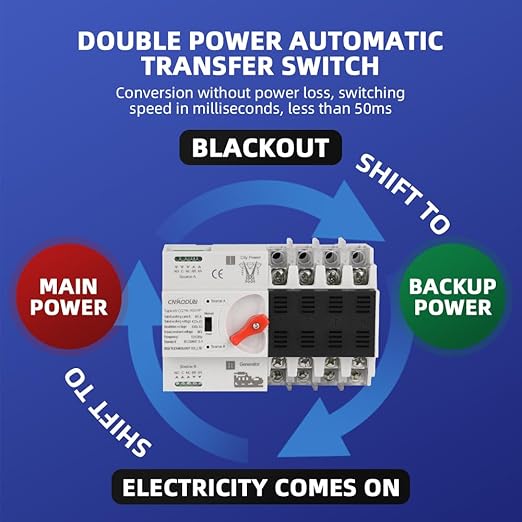

• ♥【Working Principle】When the city power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety of the power supply.When city power is restored, it will switch back to city power.This product is specially designed for home track TV installation and is specially used for Pz30 distribution box.
• ♥【Wide Range of Applicable】Widely used in residential neighborhoods, commercial buildings, shopping malls, hospitals, schools, etc.

Overview

• Operation Mode : ON-ON
• Current Rating : 100 Amps
• Operating Voltage : 400 Volts (AC)
• Contact Type : Normally Closed
• Connector Type : Plug In
• Brand : cnaodun
• Switch Type : Rotary
• Terminal : Screw
• Material : Plastic

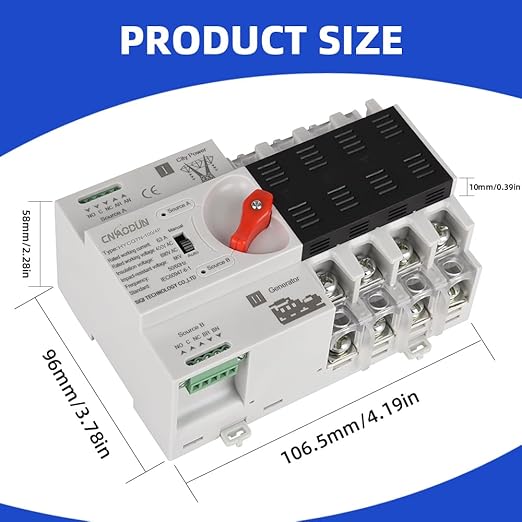

• Item dimensions L x W x H : 4.33 x 3.46 x 6.69 inches
