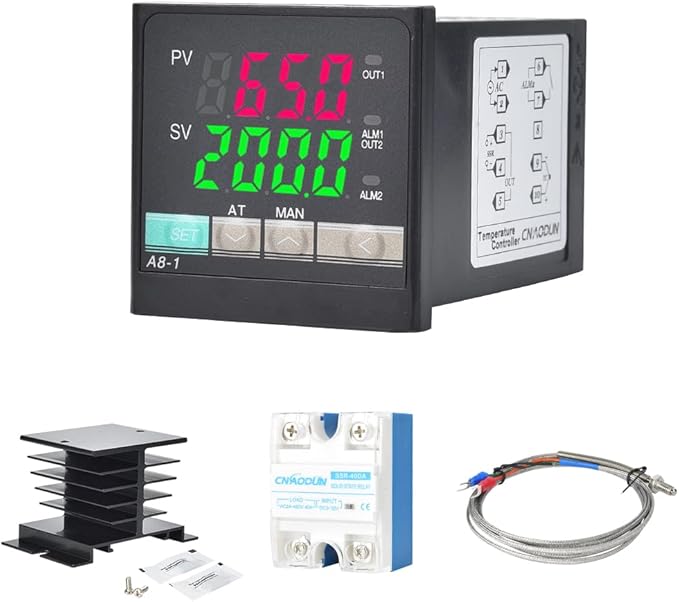

PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink

PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink

$43.73
Skip to product information
PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
  • PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink
PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink

PID Temperature Controller Kit, CNAODUN 100-240 VAC Voltage with 40DA Solid State Relay，K Type Thermocouple Probe and Heat Sink

$43.73

About This

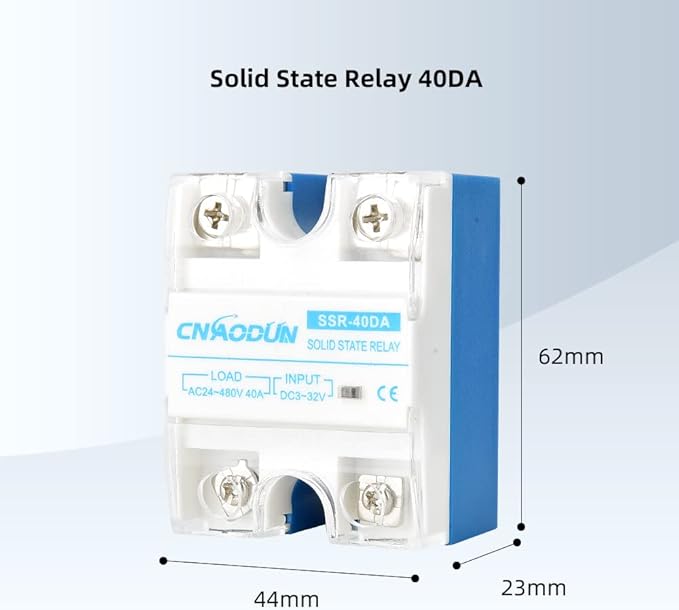

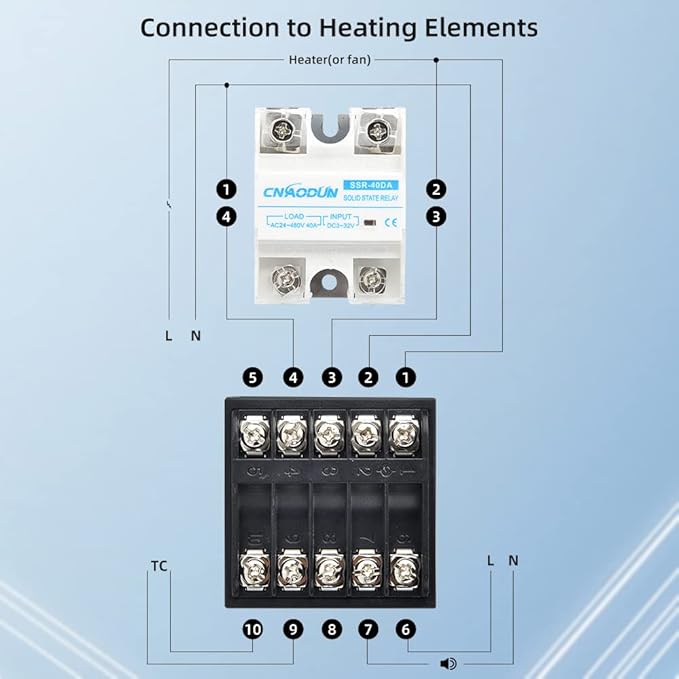

  • ♥【One Way SSR output】3,4 port output to SSR,a 40da solid state relay is included in the package.The power supply voltage for this Pid temperature controller is 100-240VAC.
  • ♥【One Alarm Output】6,7 ports are alarm outputs, AC220V/DC30V 3A (Resistive load) ON/NC, also can be used to connect relay.

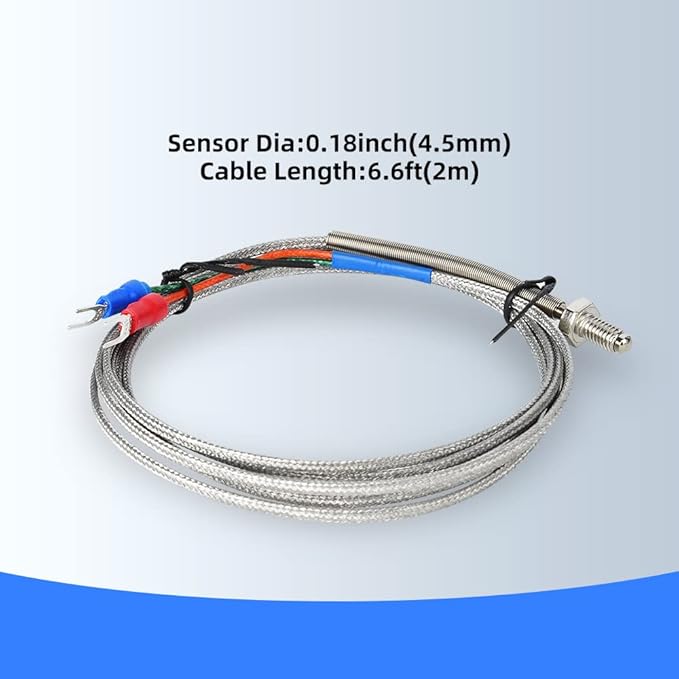

  • ♥【Supports 3 Wire Sensor Input】Support 3 wire or 2wire sensor input, K, E, J, N, W3-25, W5-26 type thermocouple and PT100,Cu50 input are available, the default setting is K type thermocouple input
  • ♥【℉ and ℃ Adjustable】Fahrenheit and Celsius adjustable, default is Fahrenheit, with PID function

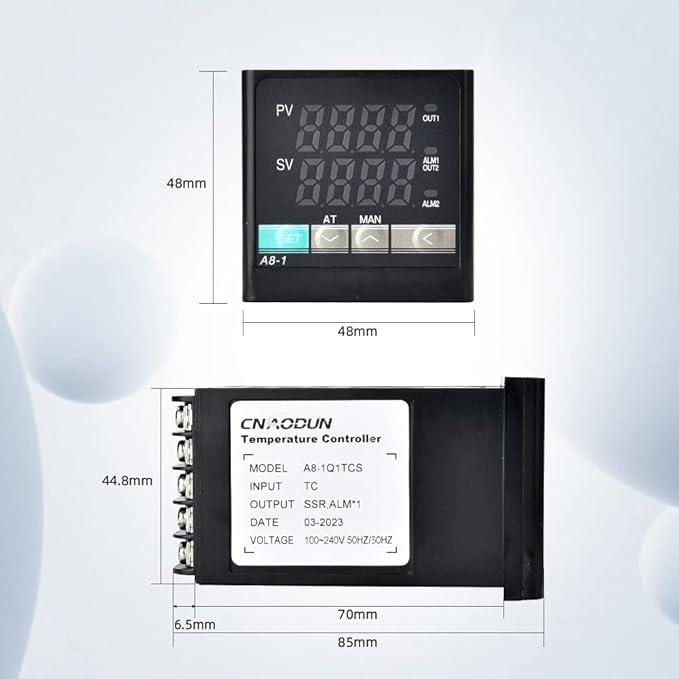

  • ♥【Temperature Digital Display】PV is the current measured temperature, SV is the set temperature, both are displayed simultaneously.

Overview

  • Color : black
  • Brand : cnaodun
  • Material : Metal, Plastic
  • Item Weight : 320 Grams
  • Display Type : LCD
