KEYMOO 125A Rotary Changeover Switch, 660V 3 Position 3 Phase 12 Terminals,2- Way 3NO 3NC Universal Selector Switch 125/D303.3

KEYMOO 125A Rotary Changeover Switch, 660V 3 Position 3 Phase 12 Terminals,2- Way 3NO 3NC Universal Selector Switch 125/D303.3

$60.71

About This

  • Model: SZW26-125/D303.3, Ui: 660V, Ith: 125A, Action Type: Latching

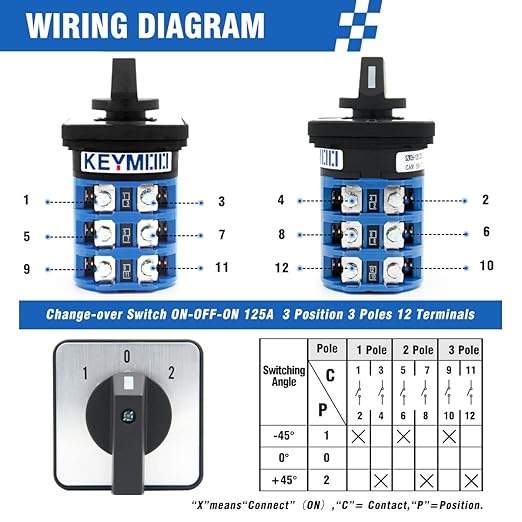

  • Positions: 3 (1-0-2 = ON-OFF-ON), Pole Numbers: 3 Poles, Terminals: 12

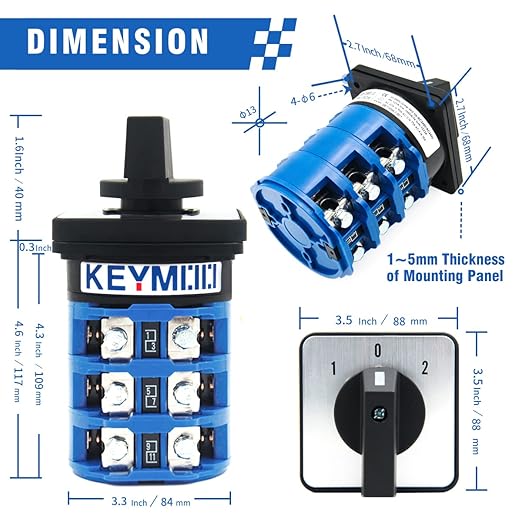

  • Overall Size: 3.50 In. x 3.50 In. x 6.1 In./ 88 x 88 x 157 mm (LxWxH), Weight: 1.90 lbs

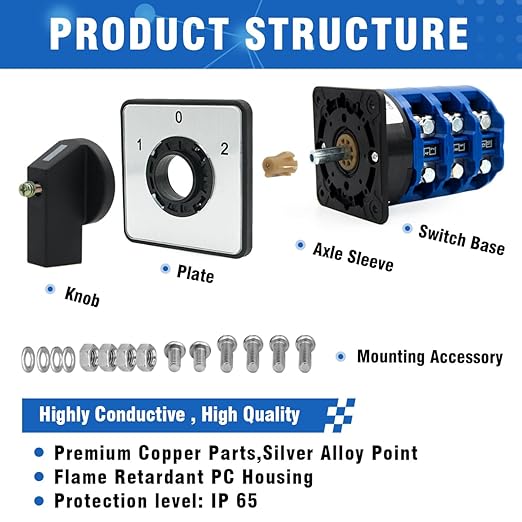

  • Material: Flame Retardant PC Housing，Excellent copper parts with silver alloy point
  • What You Get: Cam Switch, Mounting Screws, USER MANUAL

Overview

  • Operation Mode : ON-OFF-ON
  • Current Rating : 125 Amps
  • Operating Voltage : 660 Volts
  • Contact Type : Normally Open
  • Connector Type : Screws
  • Brand : Generic
  • Switch Type : Rotary
  • Terminal : Screw
  • Material : Polycarbonate
  • Item dimensions L x W x H : 3.5 x 3.5 x 6.2 inches
