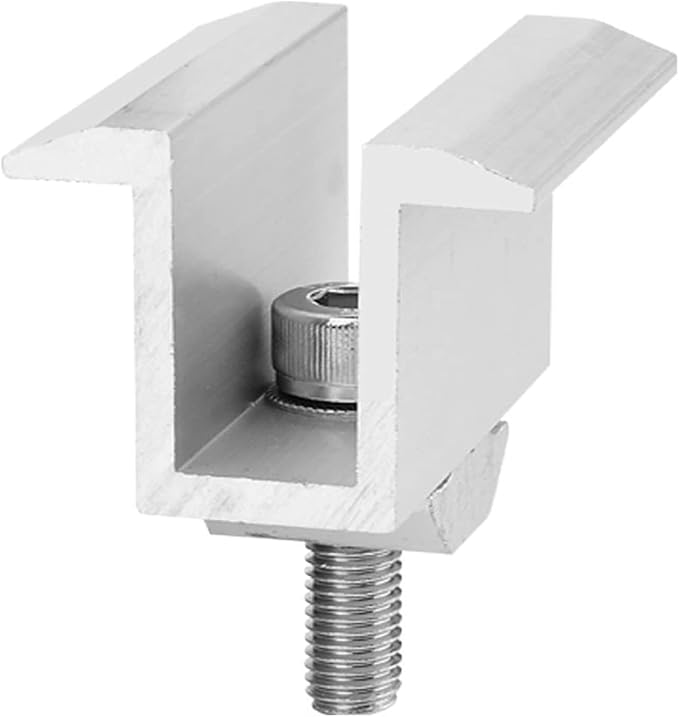

20 Pack Solar Panel Mid Clamps, Roof PV Panel Rail Aluminum Mounting Bracket Fits 1.2" - 2" Thick Solar Panel Frame
$48.98
Skip to product information
20 Pack Solar Panel Mid Clamps, Roof PV Panel Rail Aluminum Mounting Bracket Fits 1.2" - 2" Thick Solar Panel Frame
$48.98
About This
- Made of aluminum alloy 6005, anodizing surface treatment.
- Panel bracket fit 1.2" - 2" (30-50 mm) thickness solar frame panel.

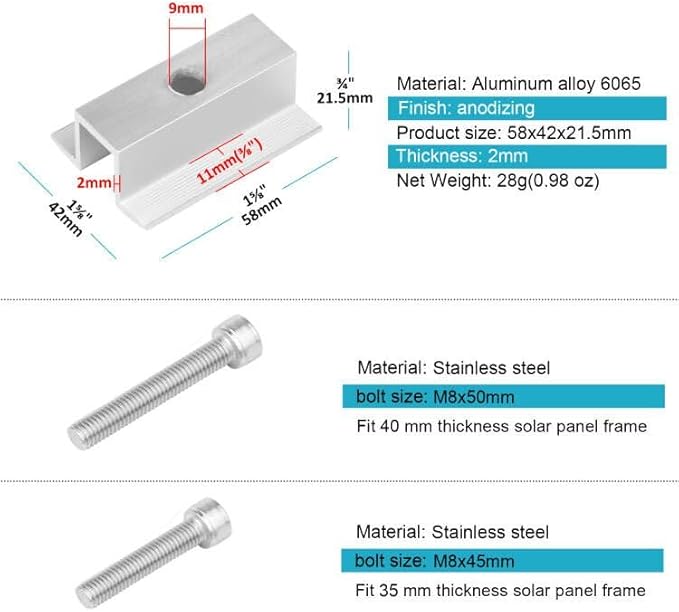

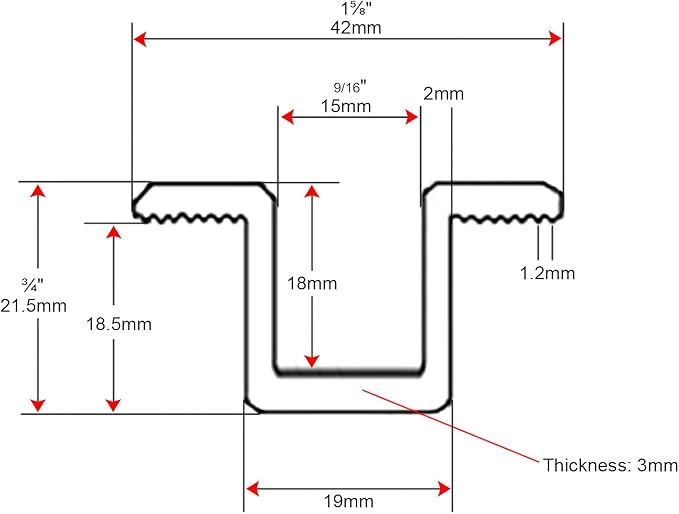

- Size: 58x42x21.5mm, thickness: 2mm, Clamp for Framed Panels part size: 11x58mm.
- Two type bolt, M8 x 50mm and M8 x 45mm, Thread pitch 1.25mm. Suit for 35 mm thickness solar frame panel and 40 mm thickness thickness solar frame panel.

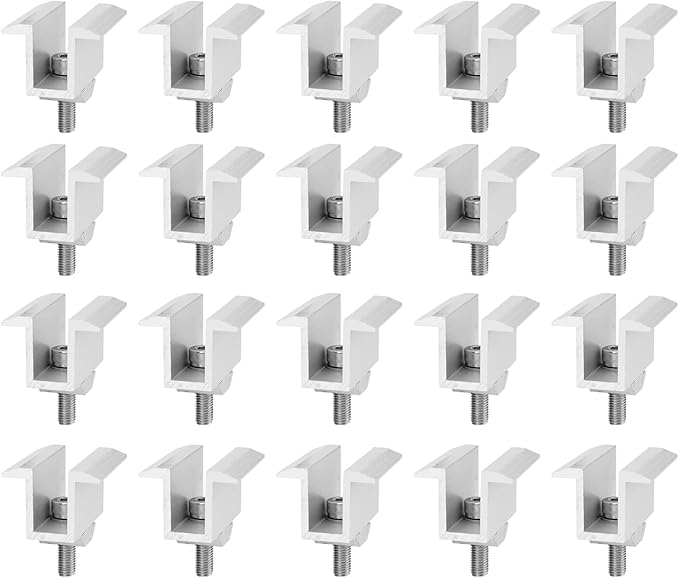

- 20 Pcs solar panel mid clamps with stainless steel bolt.

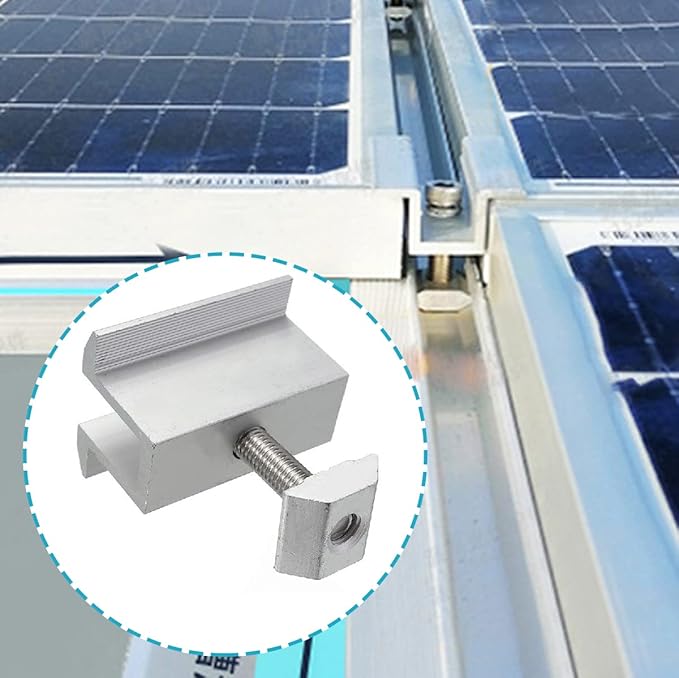

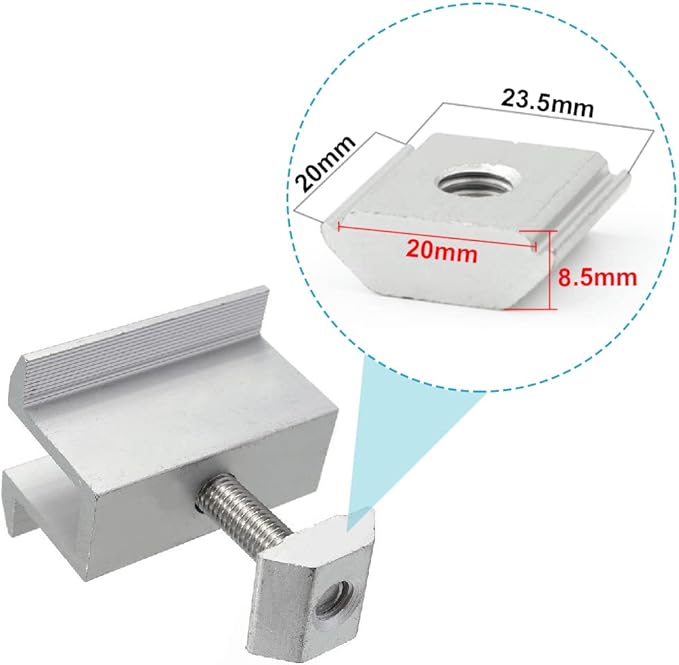

- The solar panel mid clamps is fit for aluminum rail. If it was installed on strut channel, please use with M8 strut channel nut.
Overview
- Brand : OTTFF
- Material : Aluminum alloy 6005
- Product Dimensions : 2.28"L x 1.65"W x 0.85"H
- Item Weight : 82 Grams
- Included Components : 20 solar panel mid clamps and stainless steel bolts
