Current Sensing Relay AC Current Sensing Switch 0-50A Normally Open Current Sensor Monitoring Relay (N50)
$28.42
Skip to product information
Current Sensing Relay AC Current Sensing Switch 0-50A Normally Open Current Sensor Monitoring Relay (N50)
$28.42
About This
- Universal Outputs: Input through current: 0.2-50A AC Rated load: 0.3A@240V AC/DC.
- Accurate & Dependable: Offers a sensing range of 0.2 to 50 amps and universal, solid-state outputs; Accuracy: 1%
- Faster Response Time: Once current flow is detected, it closes a set of contacts immidiately; Response Time: ≤200ms

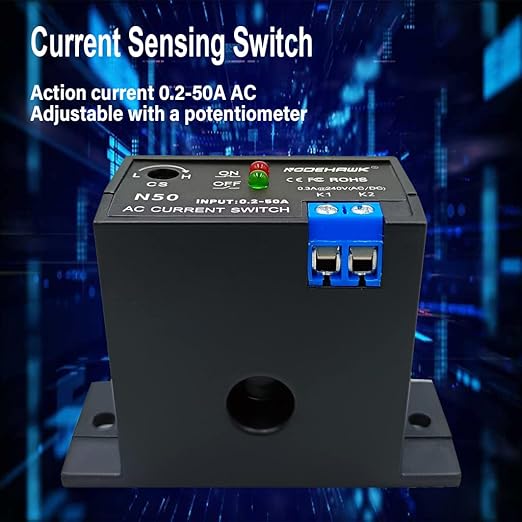

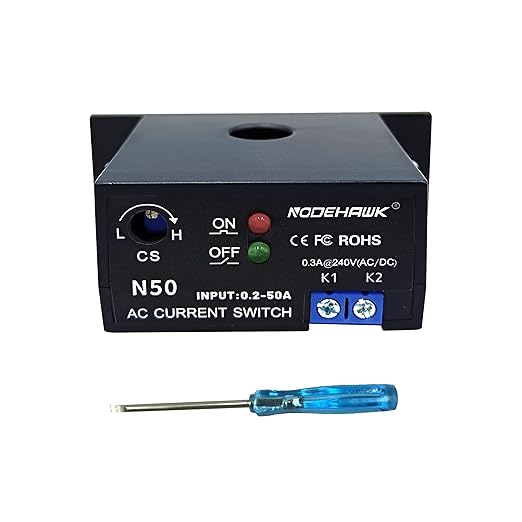

- Mutual Inductance Current Monitoring,security isolatino of input and output,Self-powered,adjustable with a potentiometer.LED indicator can conveniently and intuitively indicate the working status of the switch.

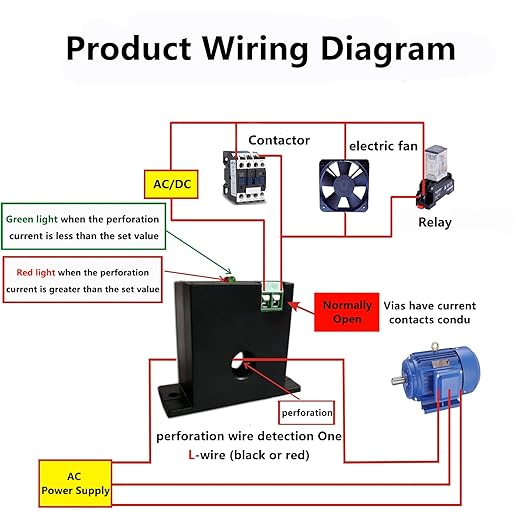

- Normally open current sensor:Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
Overview
- Connector Type : Through Hole, Surface Mount
- Contact Material : Plastic
- Contact Type : Normally Open
- Current Rating : 0.2 Amps
- Mounting Type : Surface Mount
