AC Current Sensing Switch 0-200A Normally Closed Current Sensor Monitoring Relay (NC200)
$32.71
Skip to product information
AC Current Sensing Switch 0-200A Normally Closed Current Sensor Monitoring Relay (NC200)
$32.71
About This
- Universal Outputs: Input through current: 0.5-200A AC Rated load: 0.3A@240V AC/DC.
- Accurate & Dependable: Offers a sensing range of 0.5 to 200 amps and universal, solid-state outputs; Accuracy: 1%
- Faster Response Time: Once current flow is detected, it closes a set of contacts immidiately; Response Time: ≤200ms

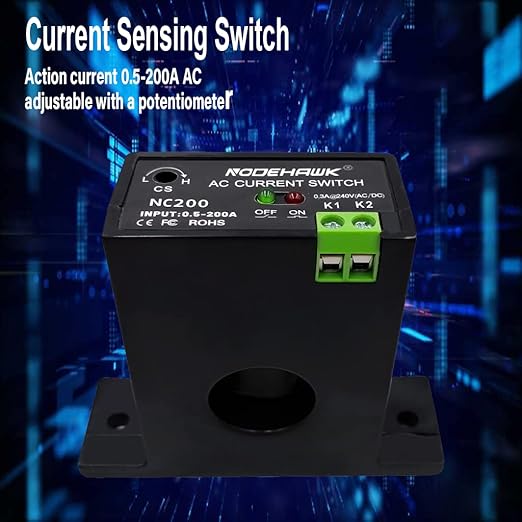

- Mutual inductance current monitoring,security isolatino of input and output,Self-powered,adjustable with a potentiometer.LED indicator can conveniently and intuitively indicate the working status of the switch.

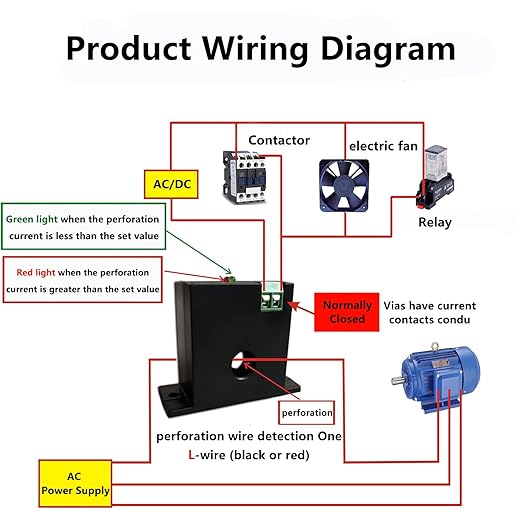

- Normally Closed current sensor:Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
Overview
- Connector Type : Surface Mount
- Contact Material : Plastic
- Contact Type : Normally Closed
- Current Rating : 50 Amps
- Mounting Type : Surface Mount
