DC Miniature Circuit Breaker, 2 Pole 500V 100 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, High Current DC Disconnect Switch MCB 2P C100
$32.88
Skip to product information
DC Miniature Circuit Breaker, 2 Pole 500V 100 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, High Current DC Disconnect Switch MCB 2P C100
$32.88
About This

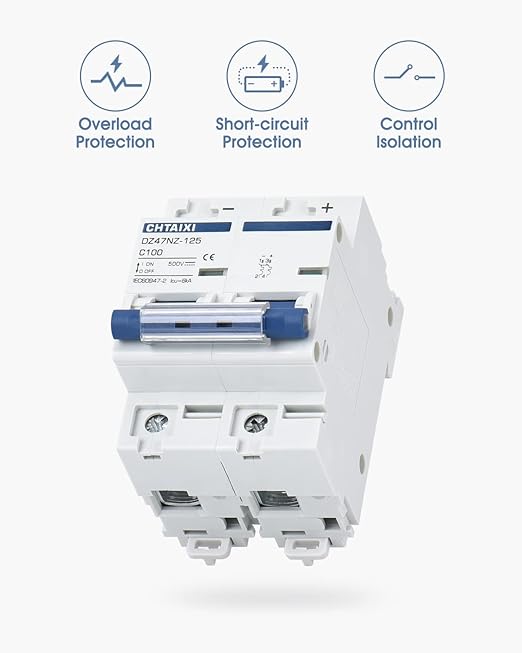

- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.

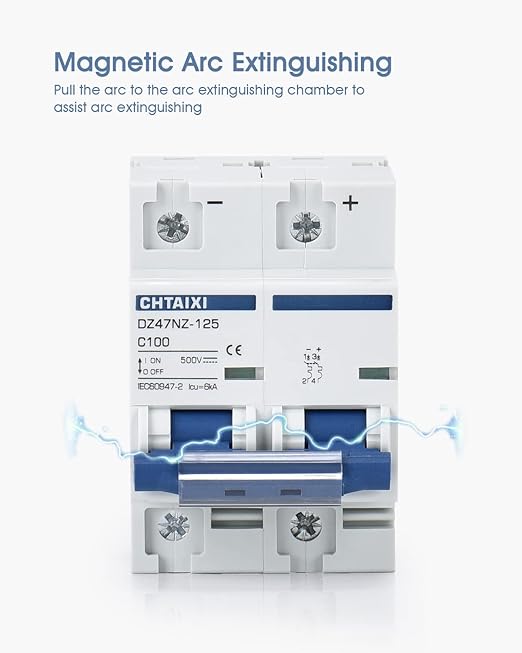

- ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.

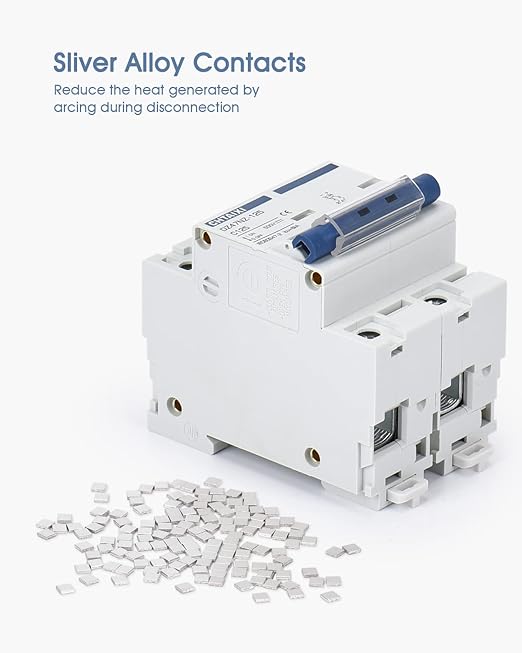

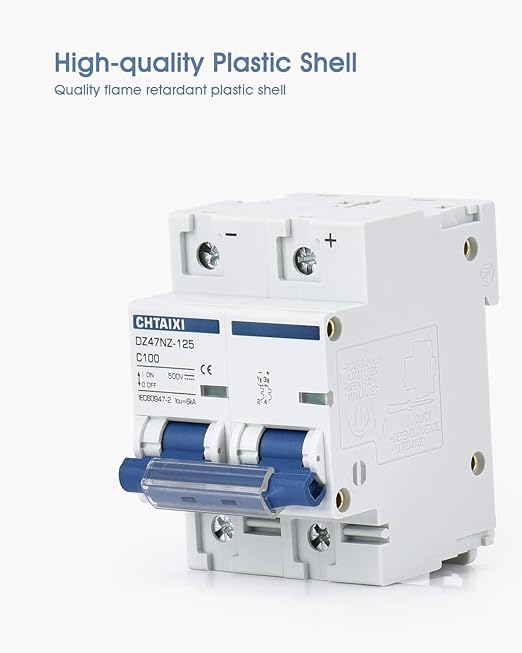

- QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
- APPLICATION: Used in solar photovoltaic system, or other DC system.

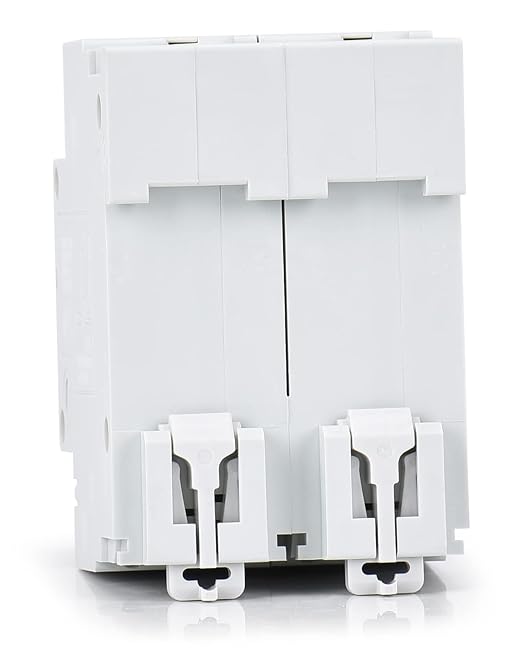

- INSTALLATION: 35mm DIN rail mount, screw clamp wires(Soft silicone wire needs to crimp fixed the wire end with copper crimp first).
Overview
- Brand : CHTAIXI
- Current Rating : 100 Amps

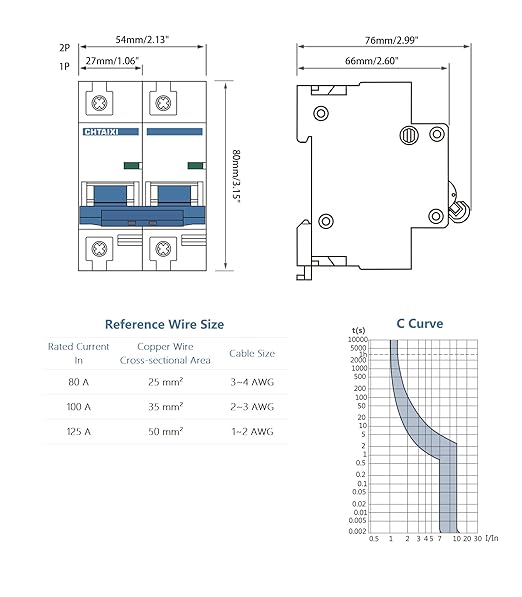

- Product Dimensions : 2.99"D x 2.13"W x 3.15"H
- Circuit Breaker Type : Standard
- Mounting Type : DIN Rail Mount
