About This

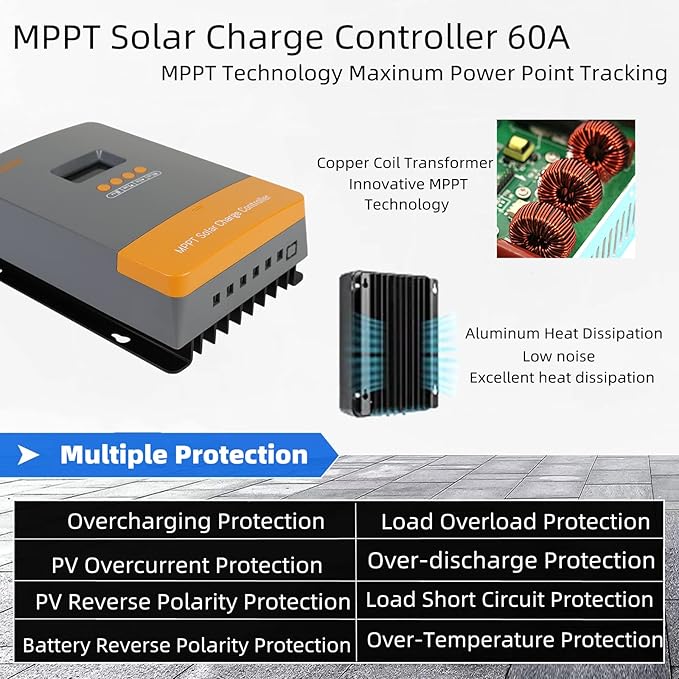

【Excellent heat dissipation】Die-cast aluminum design ensures good heat dissipation performance, reduces noise and saves energy; Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

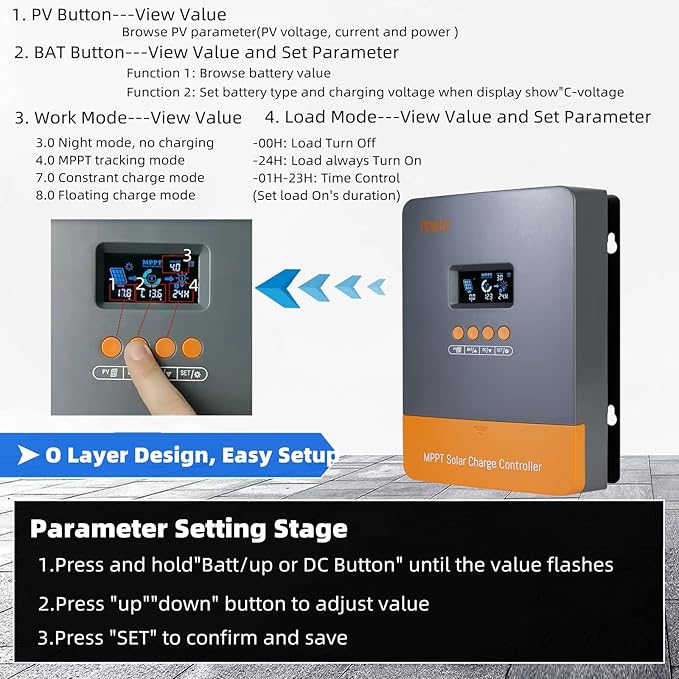

【Upgraded 0 Layer Design】0 Layer, easy installation, easy setup; Simply connect the batteries, and the controller will automatically determine the battery voltage. Multifunctional Backlight LCD display for displaying system operation information, customizable parameters, and error codes.
【Multiple Battery Adaptation】Automatically detects 12V, 24V, 36V or 48V DC system voltages, Compatibility with multiple battery types for convenient use: sealed lead-acid, flooded, gel or lithium batteries which must be deep cycle, which is suitable for RVs, Commercial Vehicles, Boats, Yachts, and any off-grid system.

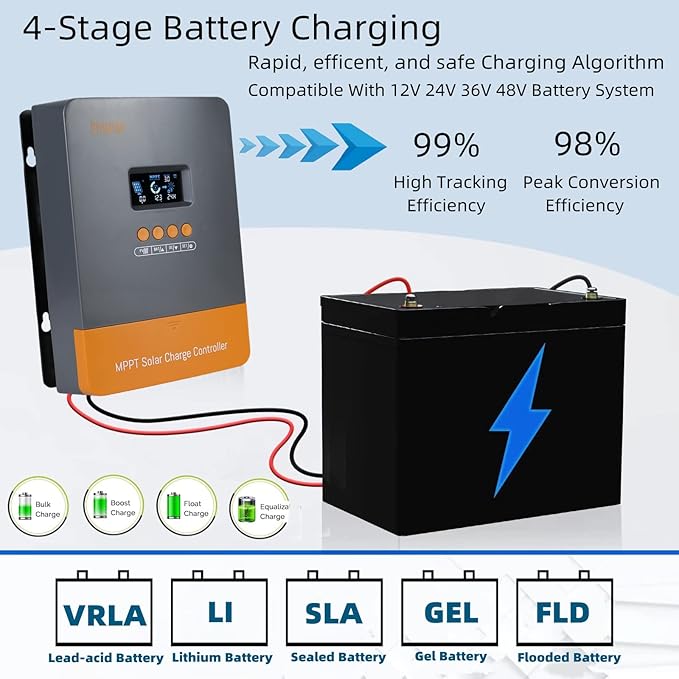

【4-Stage Safely Charging】Features 4-stage charging : Bulk Charge, Boost Charge, Float Charge, and Equalization, for a rapid, efficient , safe battery charging, avoid too much gas precipitation or overheating of the battery.
【Full System Protection】Customizable charging voltages, Overcharging, over-discharging protection; Meant to safeguard your system, the self-diagnostic capability can assess and protect against PV Array Short Circuit; PV Overcurrent;Load Overload;Load Short Circuit;PV Reverse Polarity;Battery Reverse Polarity;Over-Temperature.
