12V-110V DC Miniature Circuit Breaker, 15 Amp 1 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN-Rail/Surface Mount, Chtaixi DC Disconnect Switch B15
$16.57
Skip to product information
12V-110V DC Miniature Circuit Breaker, 15 Amp 1 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN-Rail/Surface Mount, Chtaixi DC Disconnect Switch B15
$16.57
About This

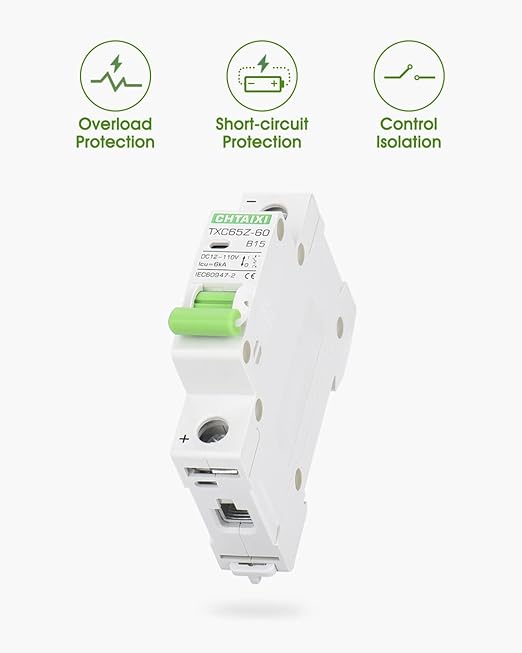

- FUNCTIONS: Used to protect 12V 24V 36V 48V 60V 100V DC circuit from overload and short circuit damage, and can also be used for control and isolation.

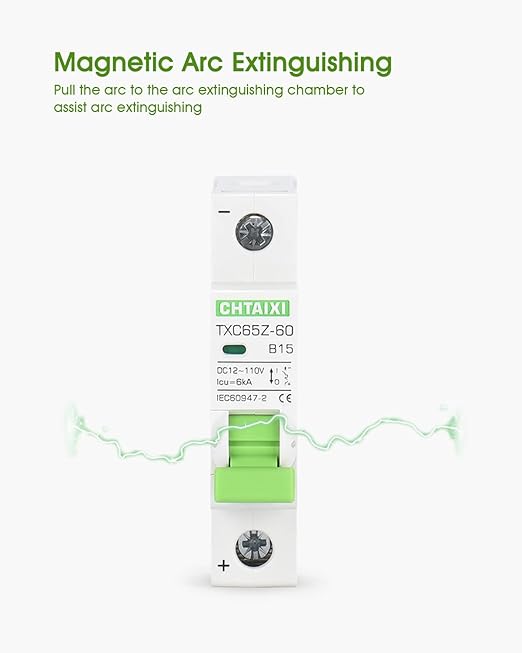

- ARC EXTINGUISHING: This DC mini circuit breaker has a magnetic system to assist arc extinguishing.

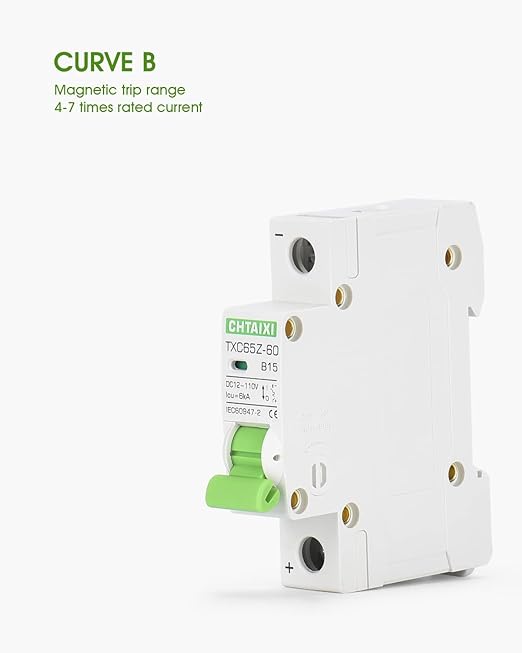

- CURVE B: Magnetic trip range 4-7 times rated current.
- APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.
- INSTALLATION: Screw clamps wire or M5 wire lug (size fits), 35 mm DIN rail mount or surface mount.
Overview
- Brand : CHTAIXI
- Current Rating : 15 Amps
- Circuit Breaker Type : Standard
- Mounting Type : DIN Rail Mount, Surface Mount
- Number Of Poles : 1
