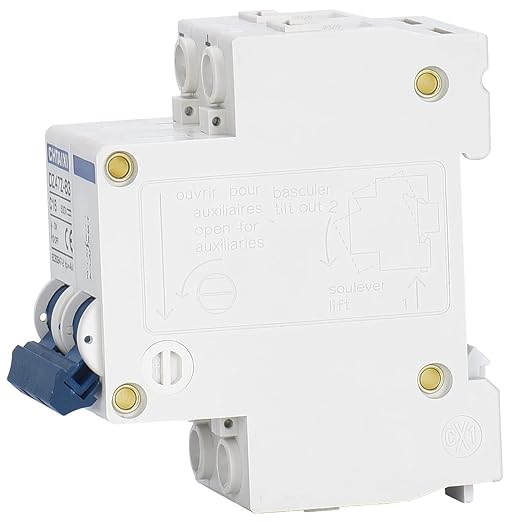

DC Miniature Circuit Breaker, 2 Pole 500V 50 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch C50
$26.06
Skip to product information
DC Miniature Circuit Breaker, 2 Pole 500V 50 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch C50
$26.06
About This

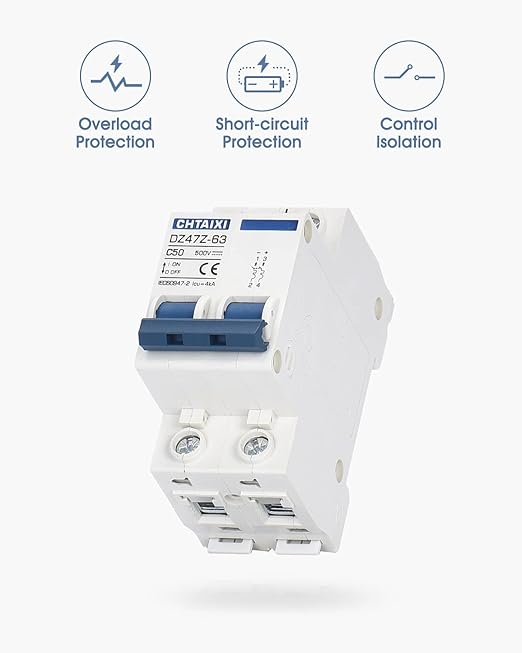

- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.

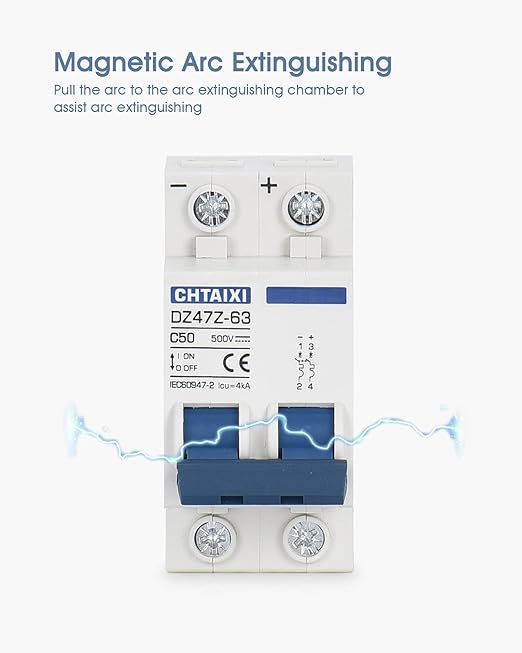

- ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
- APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.

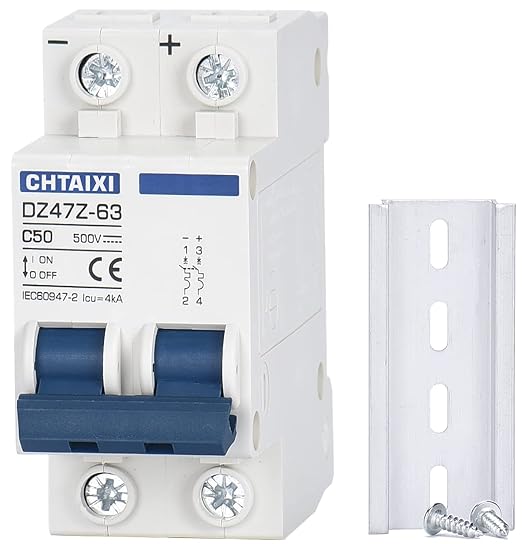

- INSTALLATION: Screw clamp wires, 35mm DIN rail mount.
Overview
- Brand : CHTAIXI
- Current Rating : 50 Amps
- Circuit Breaker Type : Standard
- Mounting Type : DIN Rail Mount
- Number Of Poles : 2
