About This

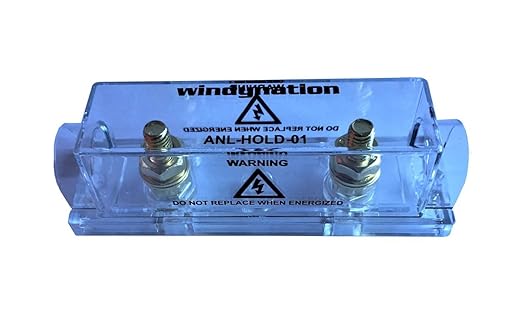

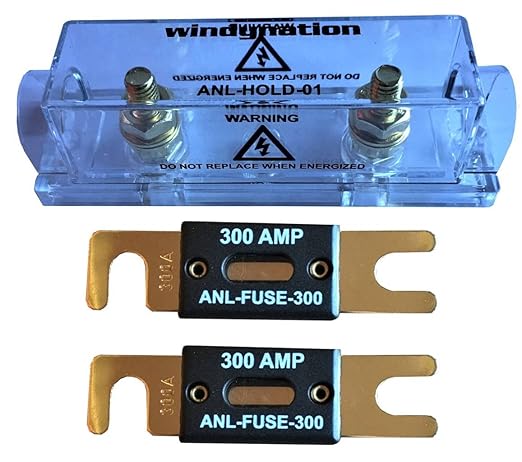

• Includes 1pc WindyNation ANL Fuse Holder + 2pcs ANL 300A Fuses

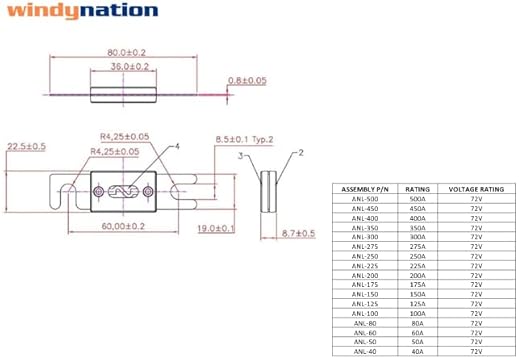

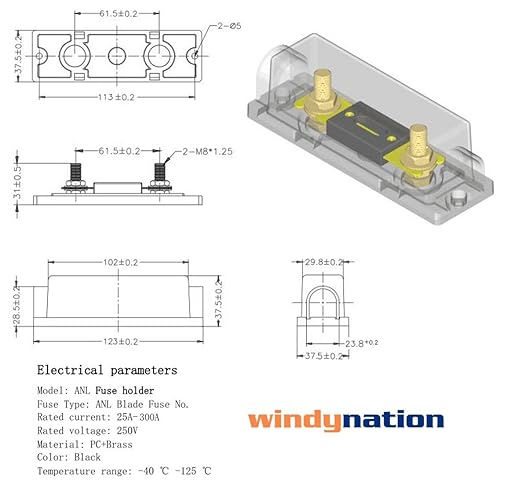

• See Images for technical specifications and dimensional drawings

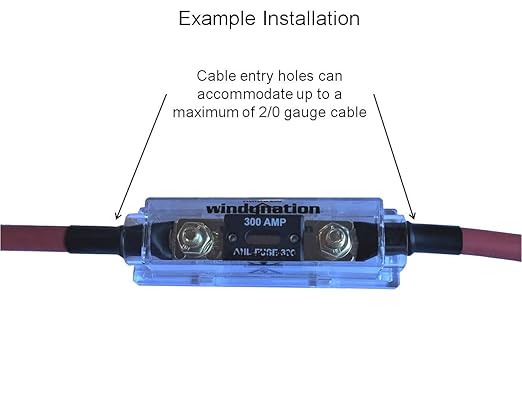

• ANL fuse holder will accept up to a maximum of 2/0 gauge cable
• For most applications, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse

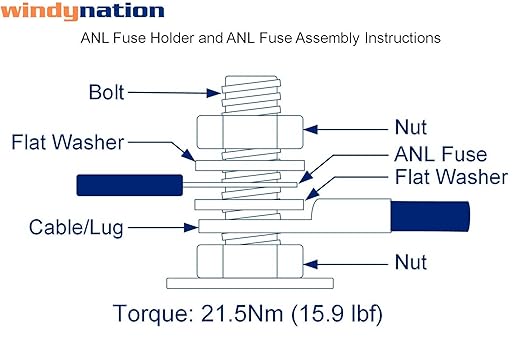

• ANL Fuse Holder mounting bolts are 8 mm in diameter. Use cable terminals with a 5/16" diameter or 8 mm diameter mounting hole to achieve a proper connection to the the ANL Fuse Holder mounting bolts

Overview

• AC Adapter Current : 300 Amps
• Brand : WindyNation
• Material : Copper
• Mounting Type : Through-Hole Mount
• UPC : 819172020569
