$48.81

About This

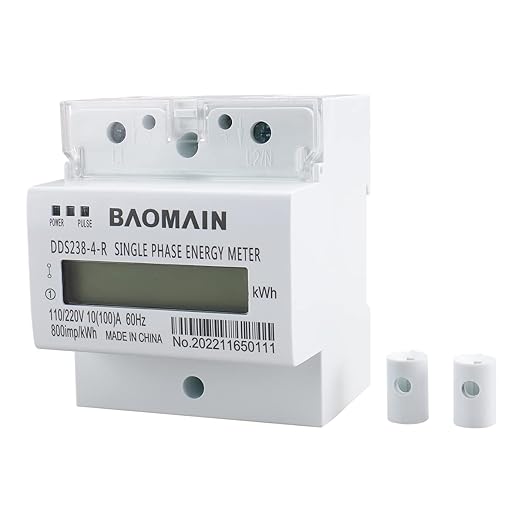

  • Accurate Single-Phase Energy Meter – Class 1.0 accuracy kWh meter designed for precise power consumption measurement in 110V/220V split-phase systems (L1-L2 = 220V, L1-N/L2-N = 110V). Ideal for residential and light commercial use
  • Wide Compatibility & High Capacity – Supports 10(100)A current range (max 100A) and operates at 60Hz ±10%. Features a starting current of 40mA for sensitive load detection

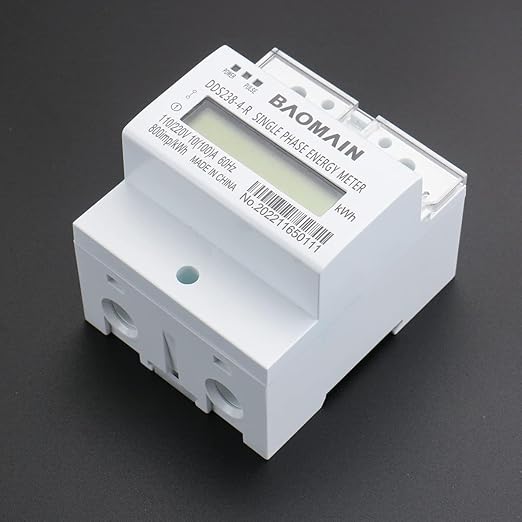

  • Clear LCD Display & Pulse Output – adopted micro-electronic techniques LCD dispiay, with 6+1-digit display (up to 999,999.9 kWh). Includes passive pulse output (800imp/kWh) for easy energy monitoring

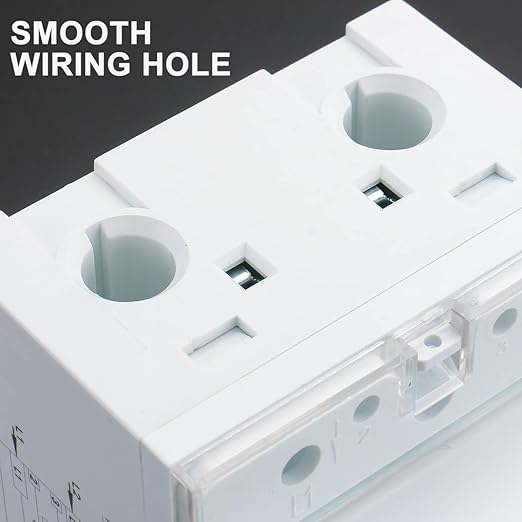

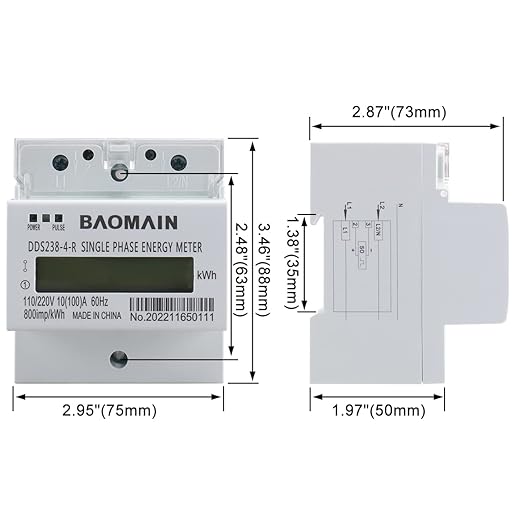

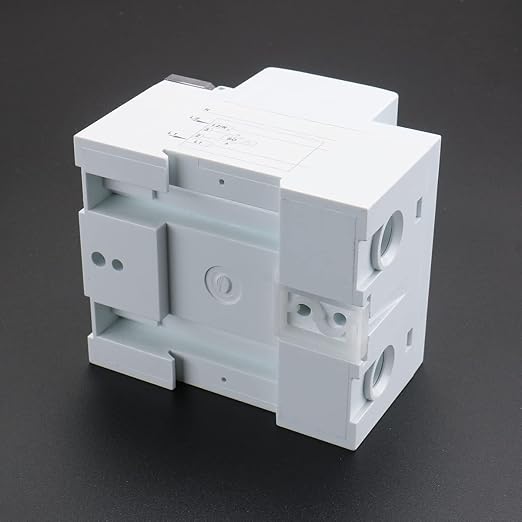

  • Durable & Easy Installation – DIN rail-mounted (35mm) design with flame-retardant PC housing. Rated for -25°C to 70°C environments and meets AC withstand voltage of 4000V/25mA

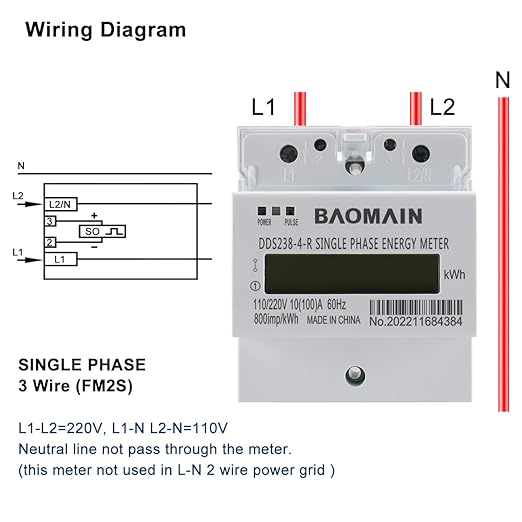

  • For Three-Wire Systems Only – Compatible with single-phase three-wire (L1, L2, N) configurations. Neutral line bypasses the meter. Professional installation recommended

Overview

  • Brand : Baomain
  • Power Source : Electricity
  • Style : Digital
  • Color : White
  • Min. Operating Voltage : 110 Volts
