About This

• COMPACT DESIGN: Supports installation in tight spaces; helps fit the unit into limited mounting areas

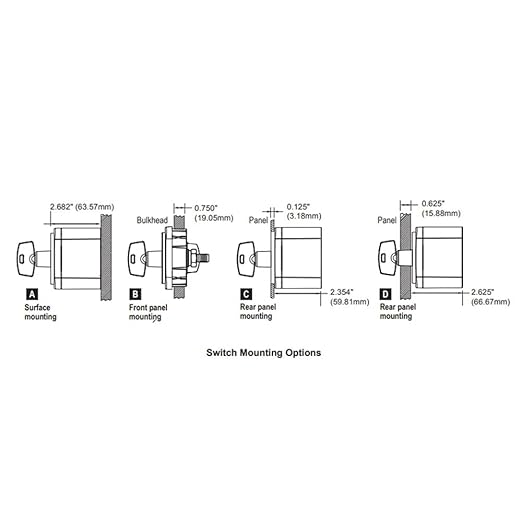

• MOUNTING OPTIONS: Offers surface, rear, or front mounting choices; allows flexible placement to suit various panel layouts
• ON OFF SWITCH: Features a removable knob to help prevent accidental current flow in the DC system; supports safer handling during electrical system service
• IGNITION PROTECTION: Suitable for installation in engine rooms of gasoline powered boats; helps meet location requirements for protected components

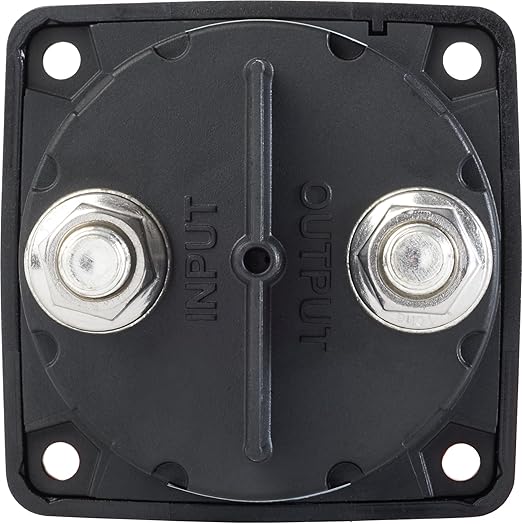

• COPPER STUDS: One piece tin plated copper studs measure 7/8 in and accept multiple cables; provide a durable connection point

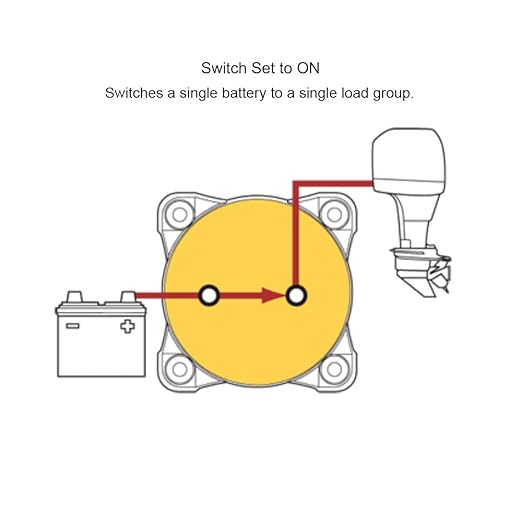

• Switches a single battery to a single load group (on/off)
• Includes removable key (in off position) for added security
• Ignition protected-safe for installation in gasoline engine compartments

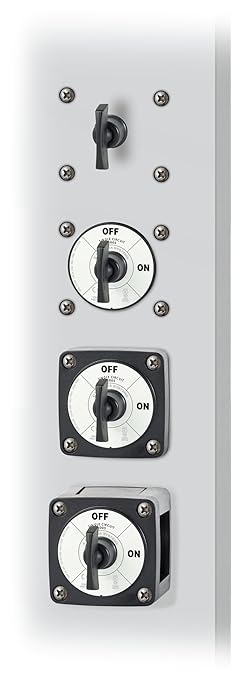

• Case design allows surface, front panel, or rear panel mounting

Overview

• Operation Mode : ON-OFF
• Current Rating : 300 Amps
• Operating Voltage : 48 Volts
• Contact Type : Normally Closed
• Connector Type : Clamp
• Brand : Blue Sea Systems
• Switch Type : Single Circuit On-off
• Terminal : 2p6t
• Material : Plastic
• Item dimensions L x W x H : 7 x 4 x 3 inches
