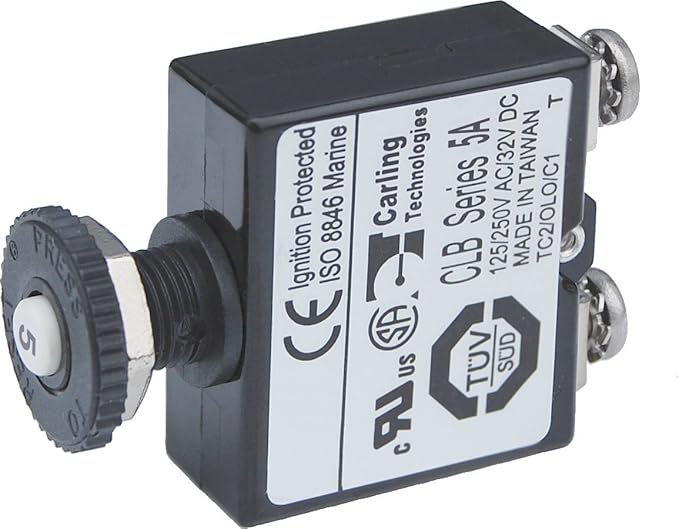

Blue Sea Systems Push Button Reset-Only CLB Circuit Breakers with Screw Terminals
$18.76
Skip to product information
Blue Sea Systems Push Button Reset-Only CLB Circuit Breakers with Screw Terminals
$18.76
About This
- 5-amp push button switch, Interrupting capacity: 3,000A @ 14.7V DC/ 2,500A @ 28V DC, Voltage Max: 32V DC, Temperature Range: -10°C to 60°C, Terminal type: #8 Screw Terminals
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
Overview
- Brand : Blue Sea Systems
- Current Rating : 5 Amps
- Circuit Breaker Type : Push Button
- Mounting Type : Panel Mount
- Number Of Poles : 1
