About This

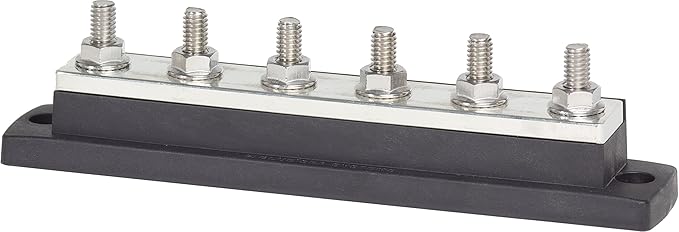

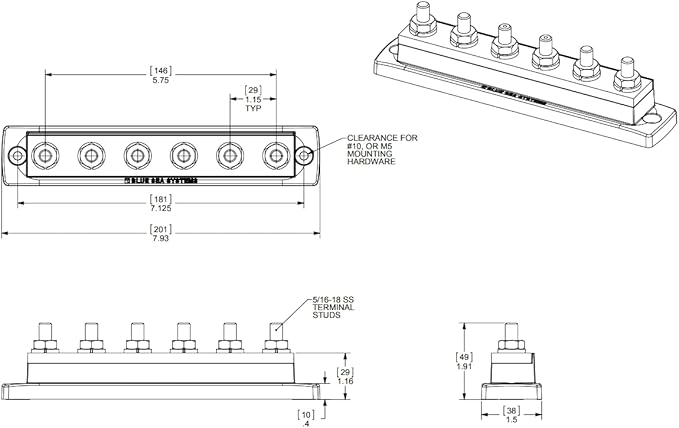

• 250A MaxiBus BusBar with 6 studs (part number 2126)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 250A AC/DC
• Terminal Studs: 6 x 5/16"-18
• UL 94-V0 rated base material resists high heat, tin plated pure electrical copper for maximum conductivity and corrision resistance
• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 250 Amps
• Connector Type : Screw
• Number Of Contacts : 6
• Mounting Type : Panel Mount
• Color : Without Cover
• Brand : Blue Sea Systems
• Voltage : 300 Volts
• Number Of Poles : 6
• Lower Temperature Rating : 1 Degrees Celsius
• Specification Met : CE
