About This

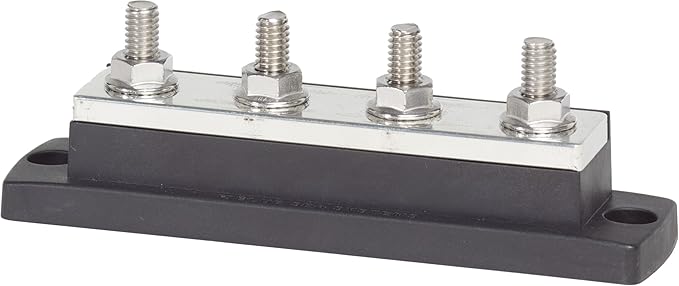

• 250A MaxiBus BusBar with 4 studs (part number 2127)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 250A AC/DC

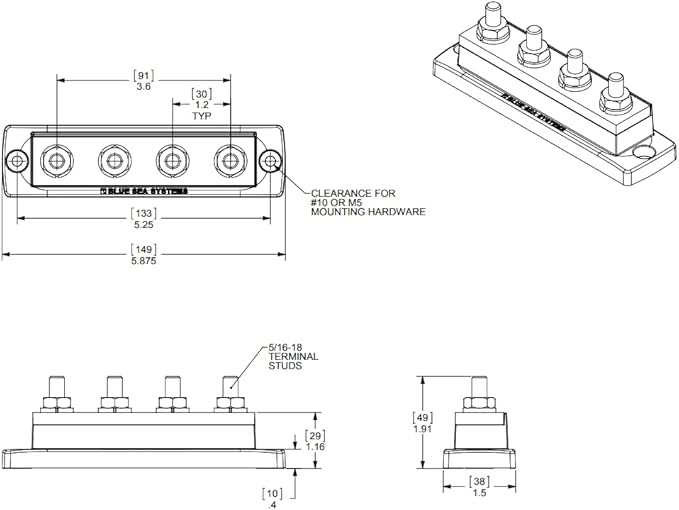

• Terminal Studs: 6 x 5/16"-18
• UL 94-V0 rated base material resists high heat, tin plated pure electrical copper for maximum conductivity and corrision resistance
• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 1 Amps
• Gauge : 1.0
• Connector Type : Screw
• Number Of Contacts : 4
• Mounting Type : Wall Mount
• Material : Tin-Plated Copper CDA 110 / UNS 11000
• Color : Multicolor
• Brand : Blue Sea Systems
• Voltage : 300 Volts
• Number Of Poles : 4
