About This

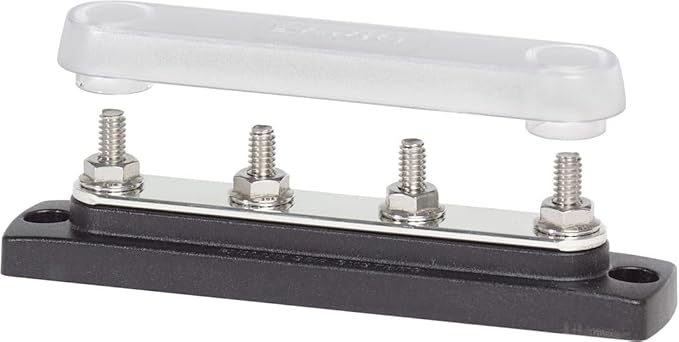

• 150A Common BusBar with 4 studs and a cover (part number 2307)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 130A AC/ 150A DC
• Terminal Studs: 4 x 1/4"-20
• Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance

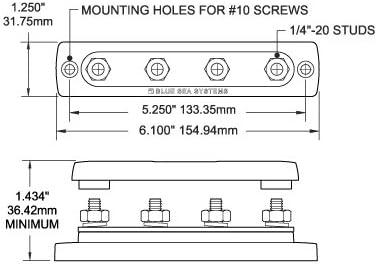

• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 150 Amps
• Item Pitch : 0.25 Inches
• Connector Type : Screw
• Number Of Contacts : 4
• Mounting Type : Screw Mount
• Material : Copper
• Color : With Cover
• Brand : Blue Sea Systems
• Voltage : 300 Volts
• Number Of Poles : 4
