About This

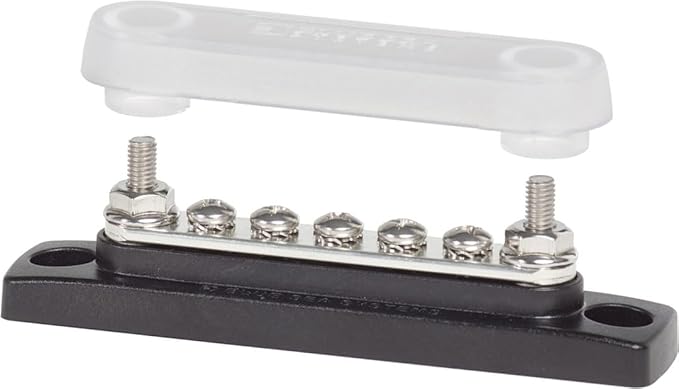

• 100A Mini BusBar with 5 screws and a cover (part number 2314)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 100A AC/DC

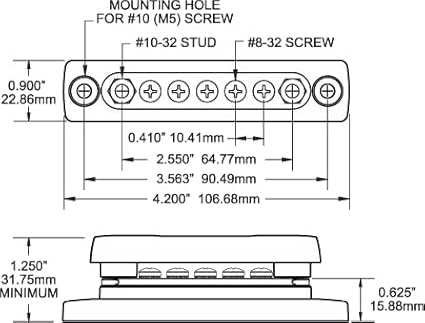

• Terminal Screws: 5 x #8-32, Terminal Studs: 2 x #10-32
• Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance, cover made with clear polycarbonate
• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 100 Amps
• Connector Type : Screw
• Number Of Contacts : 5
• Mounting Type : screw mount
• Material : Polycarbonate (PC)
• Color : With Cover
• Brand : Blue Sea Systems
• Voltage : 12 Volts
• Number Of Poles : 5
• Specification Met : CE, UL
