About This

COMPACT DESIGN: Supports installation in tight spaces; helps fit the unit into limited mounting areas

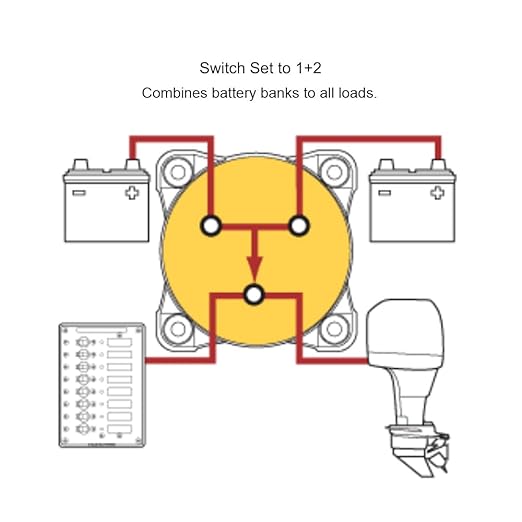

EMERGENCY COMBINE: Provides a combine feature to draw power from both batteries during engine starting or essential radio use; supports power availability when one battery is low

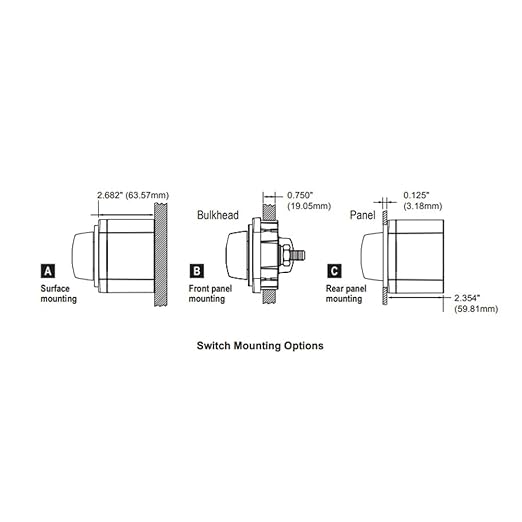

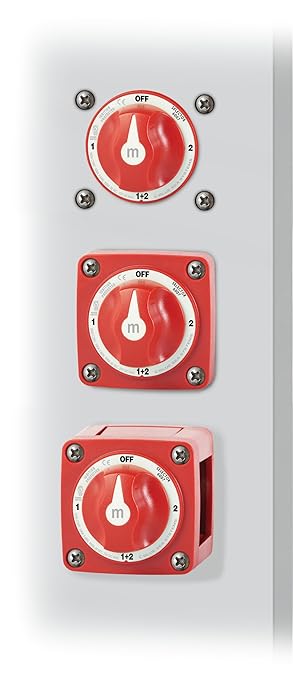

MOUNTING OPTIONS: Offers three mounting methods for flexible installation; can be placed on the surface, flush, or at the rear of the panel
CONTACT DESIGN: Make before break contact design supports switching between battery banks without power interruption; helps maintain continuity during transitions
IGNITION PROTECTION: Includes ignition protection suitable for installation in the engine room of gasoline powered boats; supports placement in locations requiring protected components

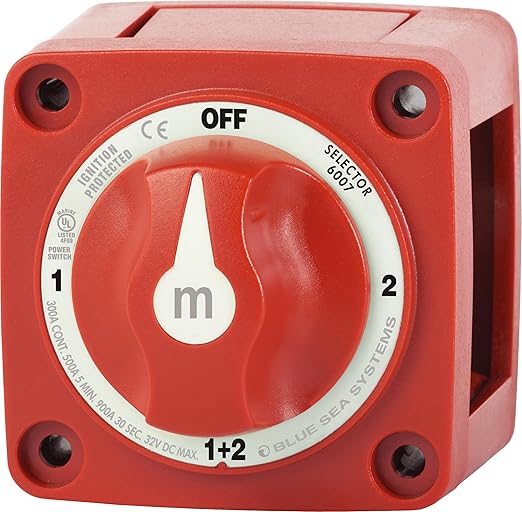

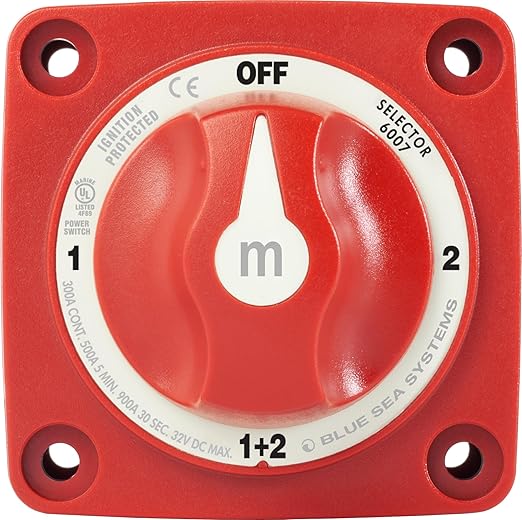

Four position selector switch
Maximum Voltage: 32V DC
Continuous Rating: 300A

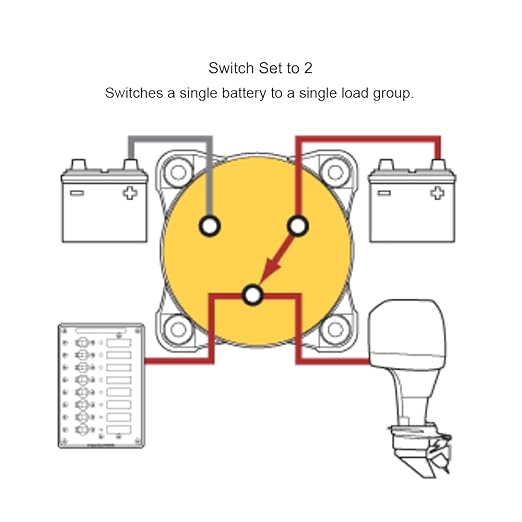

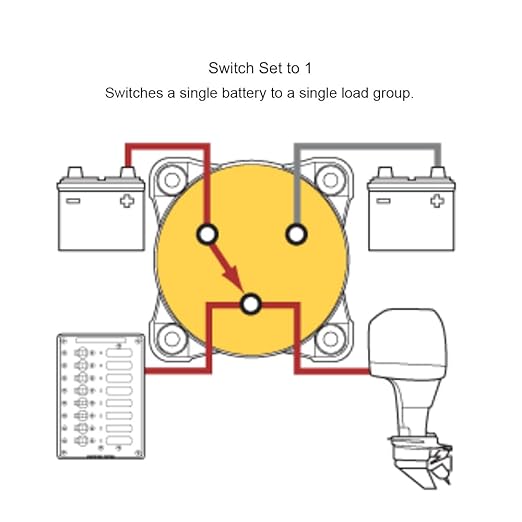

Switches isolated battery banks to all loads or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption
