About This

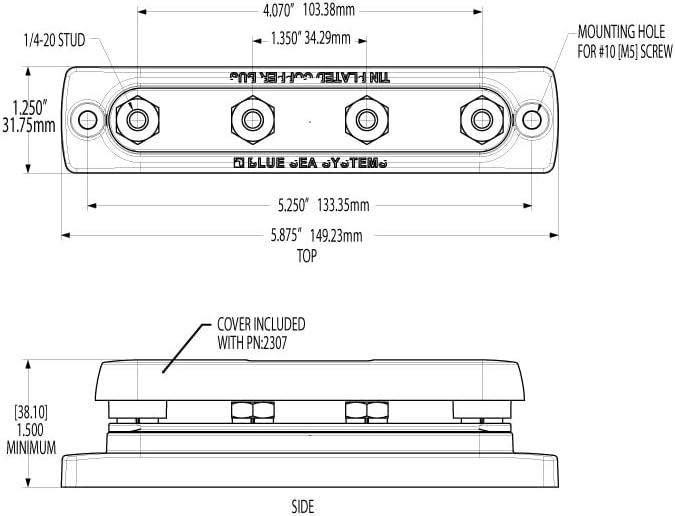

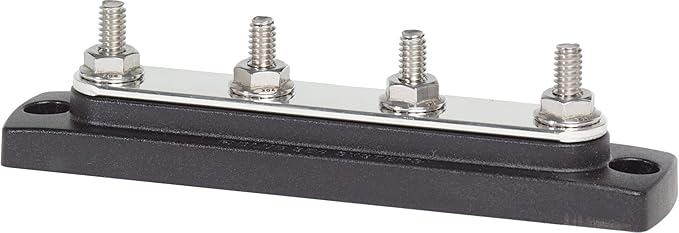

• 150A Common BusBar with 4 studs (part number 2303)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 130A AC/ 150A DC
• Terminal Studs: 4 x 1/4"-20
• Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance
• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 150 Amps
• Item Pitch : 0.25 Inches
• Connector Type : Stud
• Number Of Contacts : 4
• Mounting Type : DIN Rail Mount
• Material : Polycarbonate (PC)
• Color : Multicolor
• Brand : Blue Sea Systems
• Voltage : 300 Volts (AC)
• Number Of Poles : 4
