About This

• COMPACT DESIGN: Supports installation in tight spaces; helps fit the unit into limited mounting areas

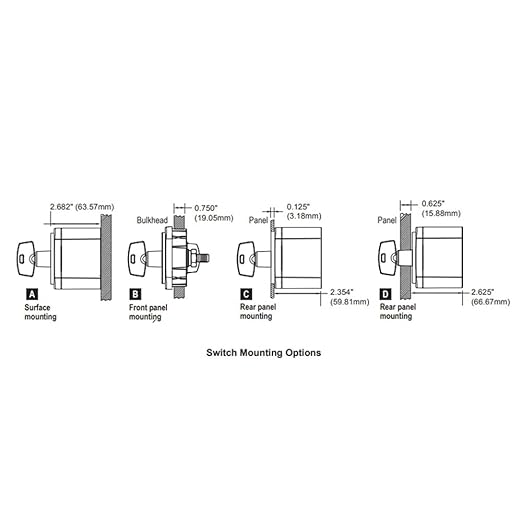

• MOUNTING OPTIONS: Offers surface, rear, or front mounting choices; allows flexible placement to suit various panel layouts
• ON OFF SWITCH: Features a removable knob to help prevent accidental current flow in the DC system; supports safer handling during electrical system service
• IGNITION PROTECTION: Suitable for installation in engine rooms of gasoline powered boats; helps meet location requirements for protected components

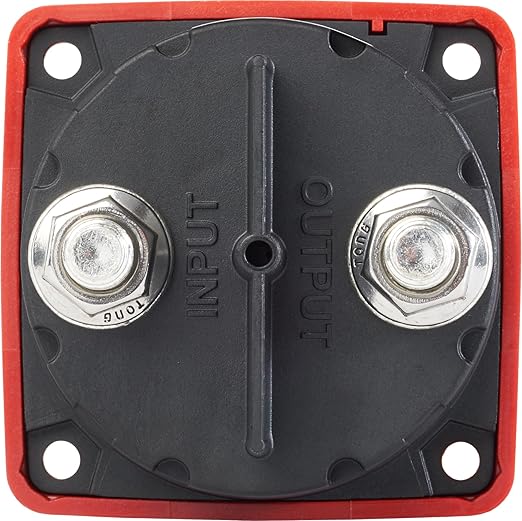

• COPPER STUDS: One piece tin plated copper studs measure 7/8 in and accept multiple cables; provide a durable connection point
• Unique key design snaps in and out but will not fall out
• Luminous label for low light readability

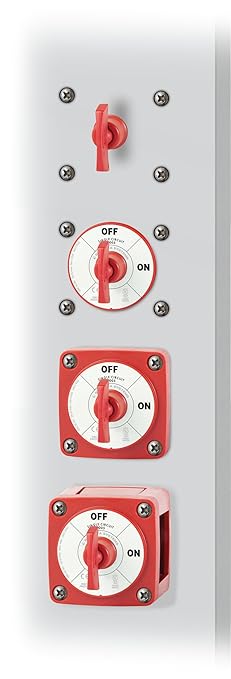

• 3 possible mounting options
• 32V DC rating; rated 250 amps

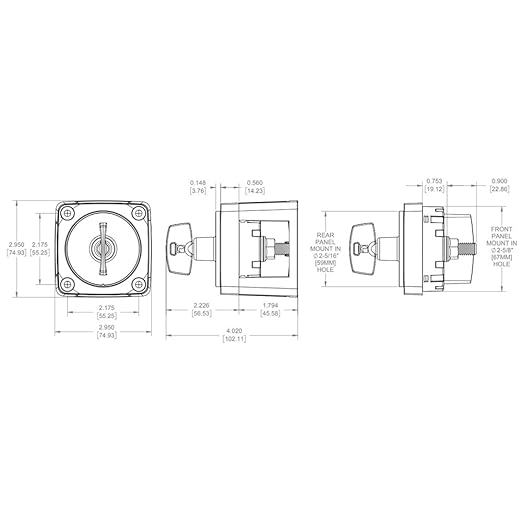

• 2.7 x 2.7 inches

Overview

• Operation Mode : ON-OFF
• Current Rating : 300 Amps
• Operating Voltage : 48 Volts
• Contact Type : Normally Open
• Connector Type : Stud Terminal
• Brand : Blue Sea Systems
• Switch Type : Single Circuit On-off
• Terminal : Spade
• Material : Plastic
• Item dimensions L x W x H : 3 x 3 x 6 inches
