About This

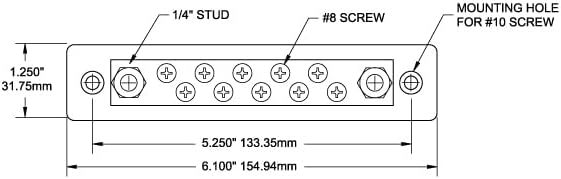

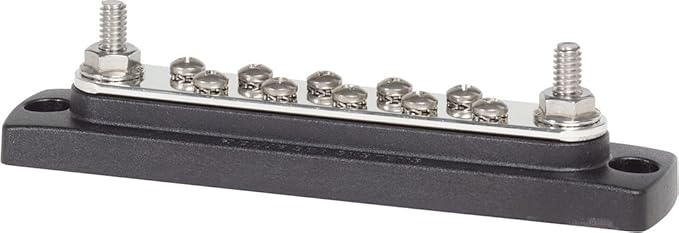

• 150A Common BusBar with 10 screws (part number 2301)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 130A AC/ 150A DC
• Terminal Screws: 10 x #8-32, Terminal Studs: 2 x 1/4"-20
• Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance
• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 150 Amps
• Connector Type : Screw
• Number Of Contacts : 2
• Mounting Type : Surface Mount
• Material : Copper
• Color : Multicolor
• Brand : Blue Sea Systems
• Voltage : 300 Volts, 48 Volts
• Number Of Poles : 2
• Specification Met : Ul 94-vo Rated
