About This

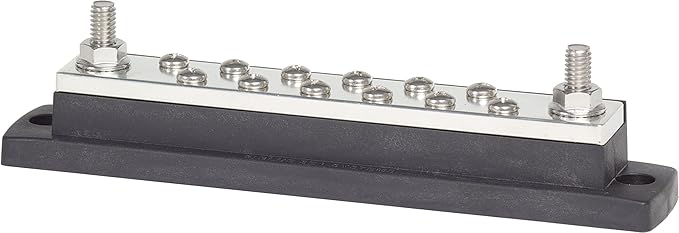

• 250A MaxiBus BusBar with 12 screws (part number 2105)
• Max voltage: 300V AC/ 48V DC, Continuous Rating: 250A AC/DC

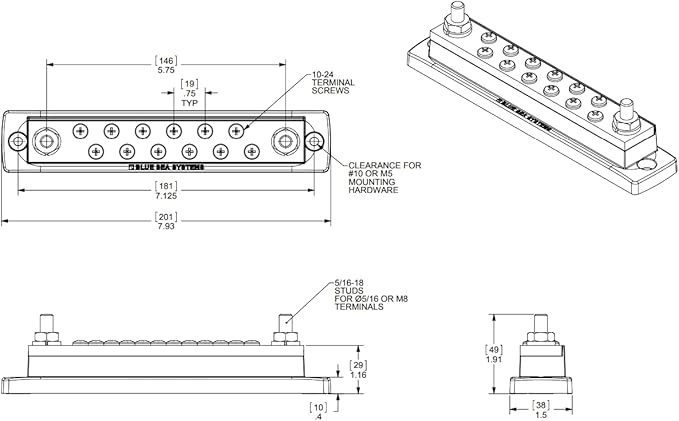

• Terminal Screws: 12 x #10-24, Terminal Studs: 2 x 5/16"-18
• UL 94-V0 rated base material resists high heat, tin plated pure electrical copper for maximum conductivity and corrision resistance
• 2 mounting holes accept #10 (M5) screws

Overview

• Current Rating : 250 Amps
• Connector Type : Screw
• Number Of Contacts : 14
• Mounting Type : Wall Mount
• Material : Tin-Plated Copper CDA 110 / UNS 11000
• Color : Black
• Brand : Blue Sea Systems
• Voltage : 300 Volts
• Number Of Poles : 2
• Specification Met : UL
