About This

• COMPACT DESIGN: Supports installation in tight spaces; helps fit the unit into limited mounting areas
• EMERGENCY COMBINE: Provides a combine feature to draw power from both batteries during engine starting or essential radio use; supports power availability when one battery is low

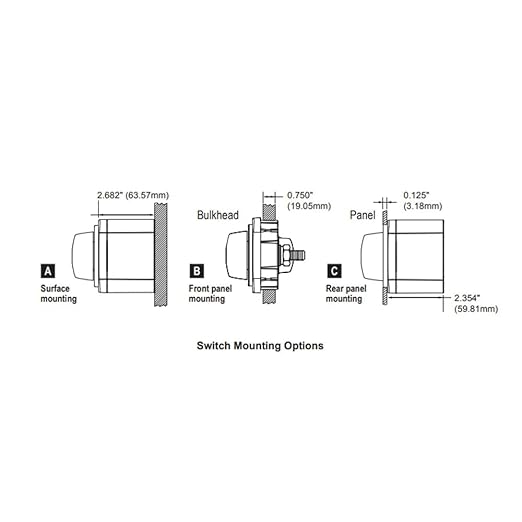

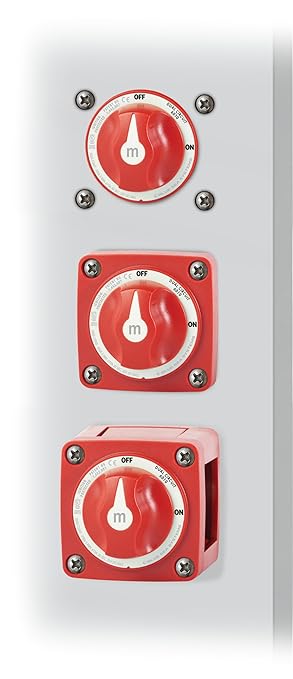

• MOUNTING OPTIONS: Offers three mounting methods for flexible installation; can be placed on the surface, flush, or at the rear of the panel
• CONTACT DESIGN: Make before break contact design supports switching between battery banks without power interruption; helps maintain continuity during transitions
• IGNITION PROTECTION: Includes ignition protection suitable for installation in the engine room of gasoline powered boats; supports placement in locations requiring protected components
• Two position dual circuit switch

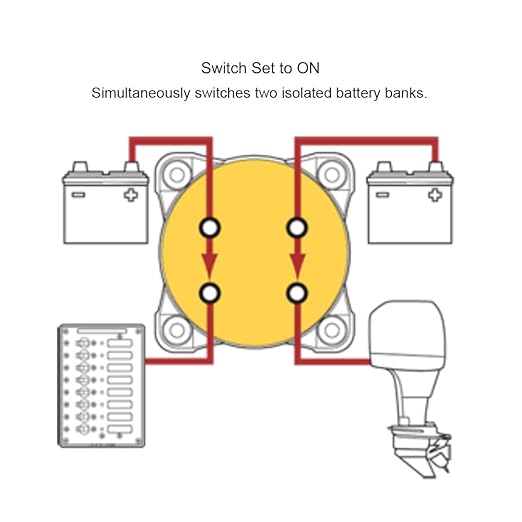

• Simultaneously switches two isolated battery banks
• Maximum Voltage: 32V DC
• Continuous Rating: 300A

Overview

• Operation Mode : ON-ON-OFF
• Current Rating : 300 Amps
• Operating Voltage : 32 Volts
• Contact Type : Normally Closed
• Connector Type : Screw
• Brand : Blue Sea Systems
• Switch Type : Dual Circuit
• Terminal : Physical
• Material : Plastic

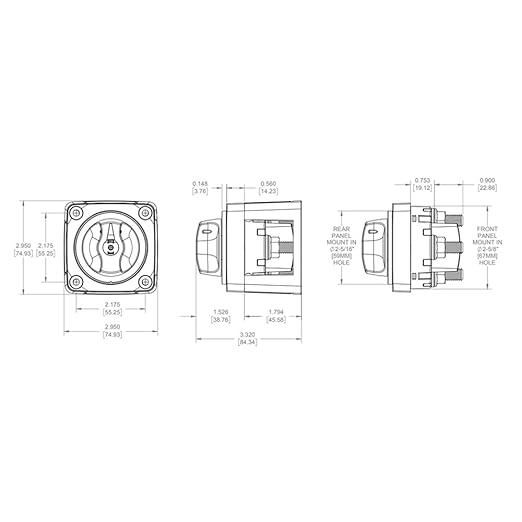

• Item dimensions L x W x H : 7 x 4 x 4 inches
